3HX Series 3 Element Fluoropolymer Heaters
3HX Series 3 Element Fluoropolymer Heaters
SKU:HEA-91dadf
High-performance 3 element Fluoropolymer (PTFE) heaters with optional thermal protection and guards for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
3HX Series 3 Element Fluoropolymer Heaters
$299.99
Quantity: 1
Claim Your Seller Account
3HX Series 3 Element Fluoropolymer Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer Heaters are designed for robust performance in industrial heating applications. Featuring three elements for efficient heat transfer, these heaters are crafted with high-grade Fluoropolymer (PTFE) material ensuring superior chemical resistance. The optional thermal overload protection and recommended guards enhance safety during operation, making these heaters ideal for a wide range of solutions. Certified by CE, CSA, and UL, manufactured by Process Technology, these heaters meet rigorous industry standards for quality and performance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX23G

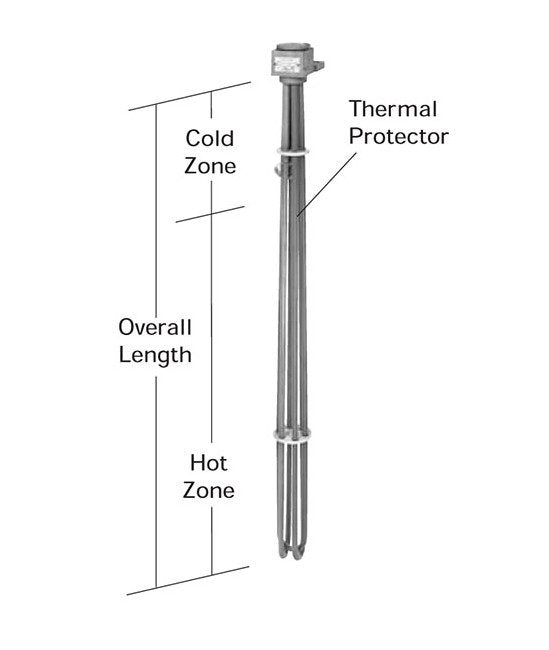

Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
11.0 Pound
Specifications Volts
480 V
Specifications Watts
1500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
11.0 lbs | 5.0 kg
