3HX Series 3 Element PTFE Heaters
3HX Series 3 Element PTFE Heaters
SKU:HEA-43255c
High-performance 3-element PTFE heaters for industrial use with customizable thermal protection and optional PTFE guards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
3HX Series 3 Element PTFE Heaters
$599.99
Quantity: 1
Claim Your Seller Account
3HX Series 3 Element PTFE Heaters
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series features three highly efficient fluoropolymer (PTFE) heating elements designed for precision in industrial applications. With a power output of 6000W and a volt rating of 480V, these heaters ensure rapid and uniform heating. Choose from various thermal overload protection options to suit your specific needs. Recommended for high-temperature solutions, the optional PTFE guards provide enhanced safety and durability. Certified by CE, CSA, and UL Listed for quality assurance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX68G

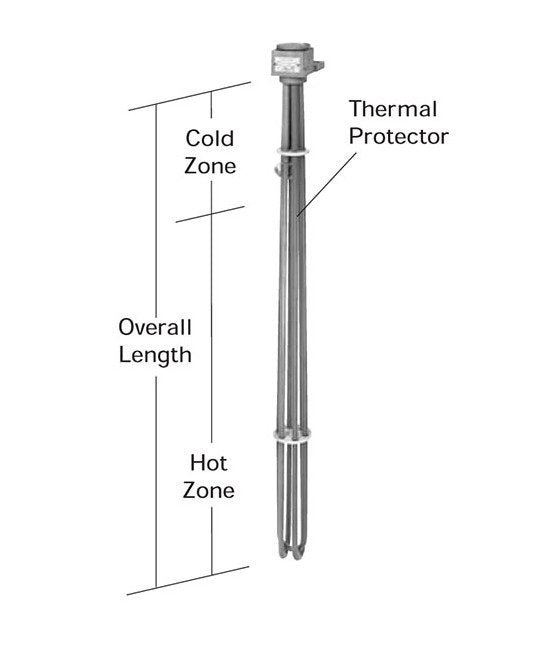

Specifications Hot Zone
56 " | 1422 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
23.0 Pound
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
23.0 lbs | 10.4 kg
