3HX Series Fluoropolymer (PTFE) Heaters
3HX Series Fluoropolymer (PTFE) Heaters
SKU:HEA-e5e562
Efficient 3-element Fluoropolymer (PTFE) Heaters with multiple thermal protectors, ideal for industrial use. CE, CSA, UL Listed.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
3HX Series Fluoropolymer (PTFE) Heaters
$299.99
Quantity: 1
Claim Your Seller Account
3HX Series Fluoropolymer (PTFE) Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series Fluoropolymer (PTFE) Heaters are designed for exceptional heating performance in various industrial applications. With three elements for efficient heating, these heaters come with a range of thermal protectors to ensure safety and longevity. Featuring a robust fluoropolymer (PTFE) construction, these heaters are recommended for solutions exceeding 180ºF. Additionally, with certifications from CE, CSA, and UL Listed, these heaters meet high industry standards for reliable and compliant operation.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX23G

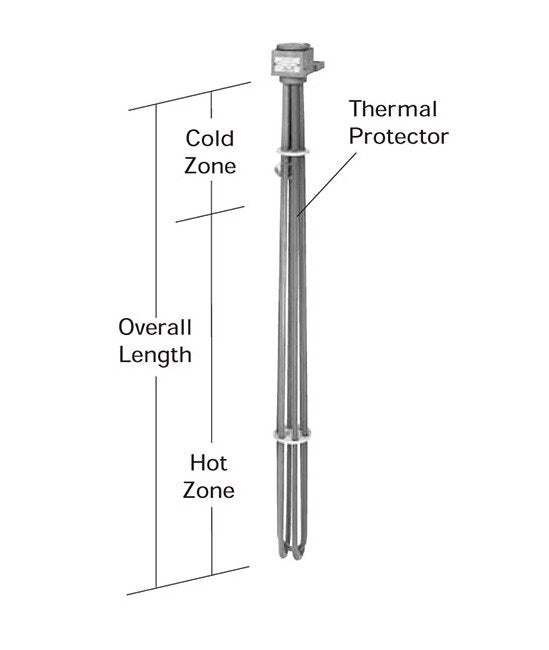

Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
11.0 Pound
Specifications Volts
120 V
Specifications Watts
1500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
11.0 lbs | 5.0 kg
