3HX Series Fluoropolymer PTFE Heaters

3HX Series Fluoropolymer PTFE Heaters

HEA-02b90d

Powerful 3-element Fluoropolymer PTFE heaters with safety options and industry certifications. Ideal for demanding applications.

$699.99
$699.99
Sale

Initiate Order

3HX Series Fluoropolymer PTFE Heaters

3HX Series Fluoropolymer PTFE Heaters

$699.99

Quantity: 1

Claim Your Seller Account

3HX Series Fluoropolymer PTFE Heaters

3HX Series Fluoropolymer PTFE Heaters

$699.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

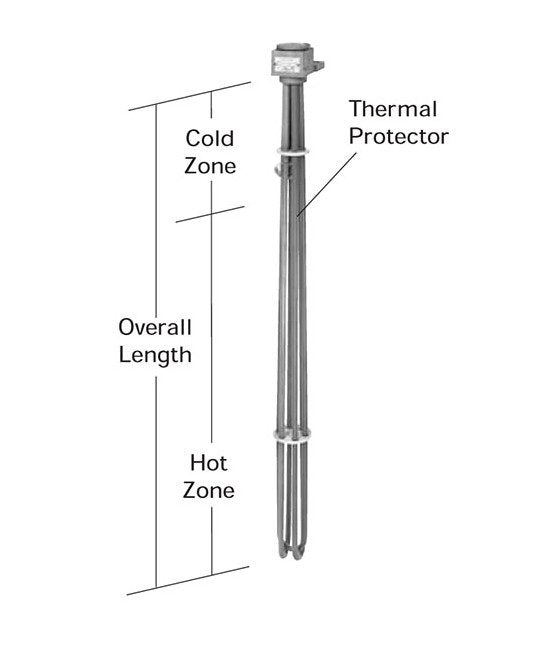

The 3HX Series Fluoropolymer (PTFE) Heaters feature three elements, 4000W power at 480V, designed with a hot zone of 39" and overall length of 47" for efficient heating. Choose from various thermal protector options based on solution temperature requirements. Certified by CE, CSA, and UL, these heaters offer superior performance and come with optional guards for added safety.

Product Specifications

Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX47G
Specifications Hot Zone
39 " | 991 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
17.0 Pound
Specifications Volts
480 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
17.0 lbs | 7.7 kg
