3HX Series Fluoropolymer (PTFE) Heaters
3HX Series Fluoropolymer (PTFE) Heaters
SKU:HEA-bb1711
High-performance 3HX Series Fluoropolymer (PTFE) Heaters for industrial applications, offering efficient heating, safety features, and durability.
Regular price
$369.99
Regular price
Sale price
$369.99
Unit price
per
Initiate Order
3HX Series Fluoropolymer (PTFE) Heaters
$369.99
Quantity: 1
Claim Your Seller Account
3HX Series Fluoropolymer (PTFE) Heaters
$369.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series Fluoropolymer (PTFE) Heaters are designed for demanding industrial applications requiring efficient heating solutions. With three elements and premium Fluoropolymer (PTFE) material, these heaters offer superior heat transfer, ensuring quick and consistent heating performance. Featuring a range of thermal overload protection options, including replaceable and resettable thermal protectors, these heaters prioritize safety and longevity. The recommended guards, available separately, further enhance durability, especially for harsh chemical environments. Certified by CE, CSA, and UL, these heaters meet the highest quality and safety standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX35G

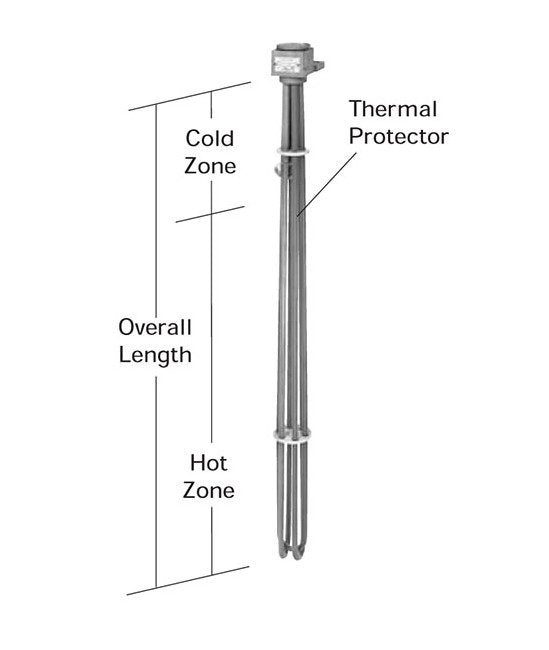

Specifications Hot Zone
29 " | 737 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
14.0 Pound
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
14.0 lbs | 6.4 kg
