3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
SKU:HEA-8ce534
High-performance 3-element Fluoropolymer (PTFE) Heaters with multiple thermal protector options. CE, CSA, UL Listed.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
$549.99
Quantity: 1
Claim Your Seller Account
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

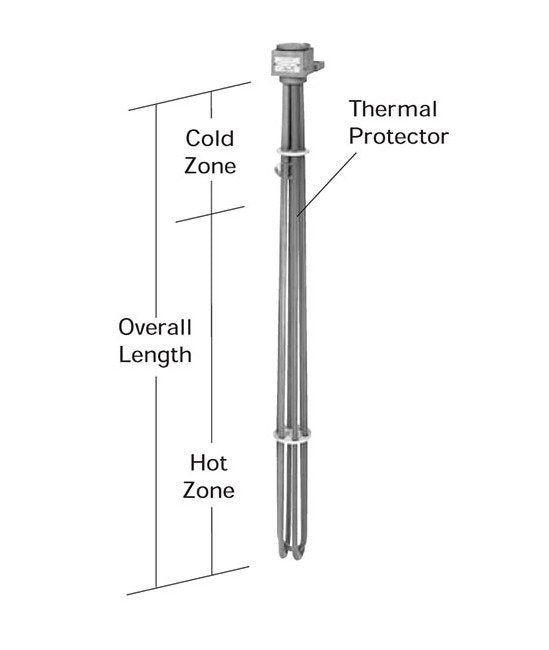

The 3HX Series features a robust design with three elements, delivering 5000W of power in a hot zone of 48" and overall length of 59". Built with Fluoropolymer (PTFE) material, these heaters come with multiple thermal protector options for solutions up to 250°F, ensuring safety and efficiency. Recommended guards provide extra protection for corrosive solutions, meeting CE, CSA, and UL Listed standards. Manufactured by Process Technology, these heaters are ideal for industrial applications requiring high-performance and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX59G
Specifications Hot Zone
48 " | 1219 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
20.0 Pound
Specifications Volts
240 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
