3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
SKU:HEA-f3786d
Powerful 3 Element Fluoropolymer (PTFE) Heaters for industrial use. Safety features, high performance, and compliance with CE, CSA, and UL standards.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
$449.99
Quantity: 1
Claim Your Seller Account
3HX Series Fluoropolymer (PTFE) Heaters - 3 Element
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters offer exceptional performance for industrial heating needs. With three elements capable of 6000W, these heaters provide efficient heating with a watt density of 10 W/in². Featuring a hot zone of 56" and overall length of 68", these heaters are designed with safety in mind, offering multiple thermal overload protection options suitable for various solutions. Manufactured by Process Technology, these heaters are CE, CSA, and UL Listed, ensuring compliance with stringent industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX68G

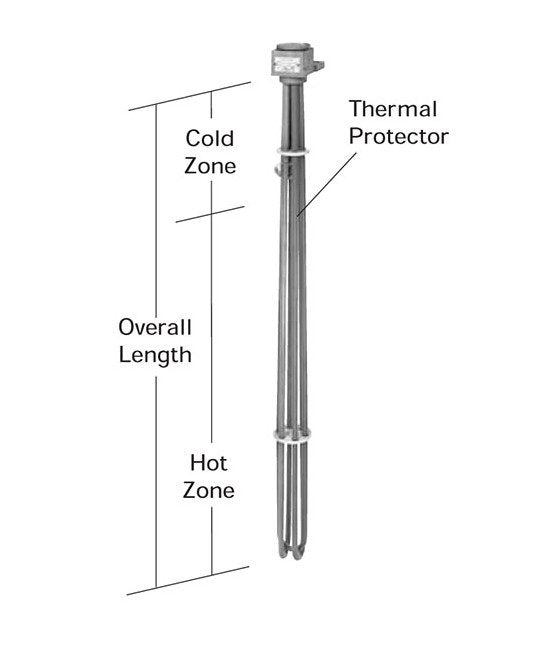

Specifications Hot Zone
56 " | 1422 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
68 " | 1727 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
23.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
23.0 lbs | 10.4 kg
