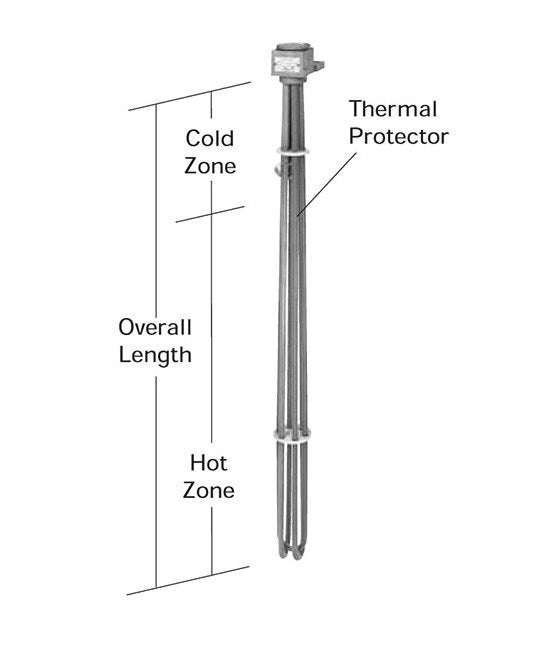

The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters offer precision heating for industrial applications. These heaters come in single or three-phase options with thermal overload protection. With a wattage of 2000W and advanced thermal protectors, these heaters ensure safe and efficient operations. Recommended for solutions up to 250°F, they also feature CE, CSA, and UL certifications for quality assurance.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX29G
Specifications Hot Zone
22 " | 559 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
12.0 Pound
Specifications Volts
480 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
12.0 lbs | 5.4 kg
