3HX Series PTFE Heaters - 3 Element, 3000W, Single/Three Phase
3HX Series PTFE Heaters - 3 Element, 3000W, Single/Three Phase
SKU:HEA-a3cecb
High-performance 3 Element PTFE Heaters with 3000W, multiple thermal protectors, and CE, CSA, UL certifications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters - 3 Element, 3000W, Single/Three Phase
$399.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters - 3 Element, 3000W, Single/Three Phase
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters deliver exceptional performance for demanding industrial applications. With a power output of 3000W and a durable construction using Fluoropolymer (PTFE) material, these heaters ensure efficient heat transfer and resistance to corrosive solutions. They come with multiple thermal protector options, including resettable ones, catering to various temperature requirements. Certified by CE, CSA, and UL, these heaters meet stringent quality and safety standards, making them ideal for both commercial and institutional use.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX35G

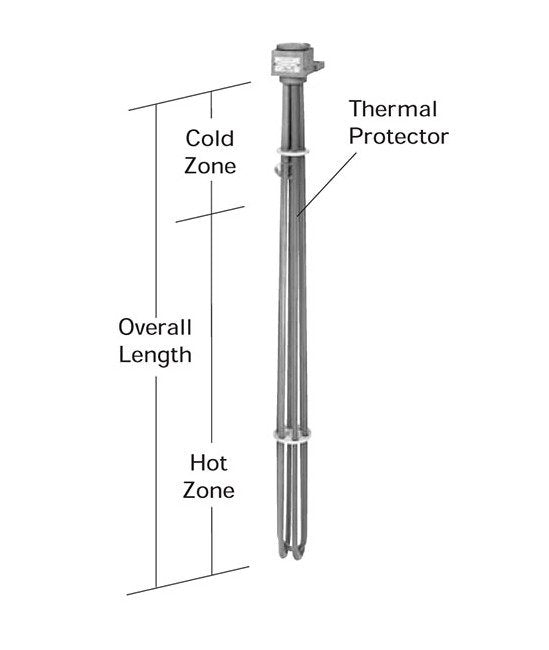

Specifications Hot Zone
29 " | 737 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
14.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
14.0 lbs | 6.4 kg
