3HX Series PTFE Heaters - 3 Element Fluoropolymer
3HX Series PTFE Heaters - 3 Element Fluoropolymer
SKU:HEA-877565
Efficient and durable 3HX Series PTFE Heaters with precise thermal protection for solutions up to 250°F. CE, CSA & UL listed.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters - 3 Element Fluoropolymer
$289.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters - 3 Element Fluoropolymer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters are designed for both single and three-phase applications, offering precise thermal overload protection options. With a Wattage of 1000W and a hot zone of 10", these heaters ensure efficient heating for solutions up to 250°F. Manufactured by Process Technology, these heaters meet CE, CSA, and UL standards, providing reliable performance and durability. Guards are sold separately, with Fluoropolymer (PTFE) guards recommended for solutions exceeding 180°F.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX17G

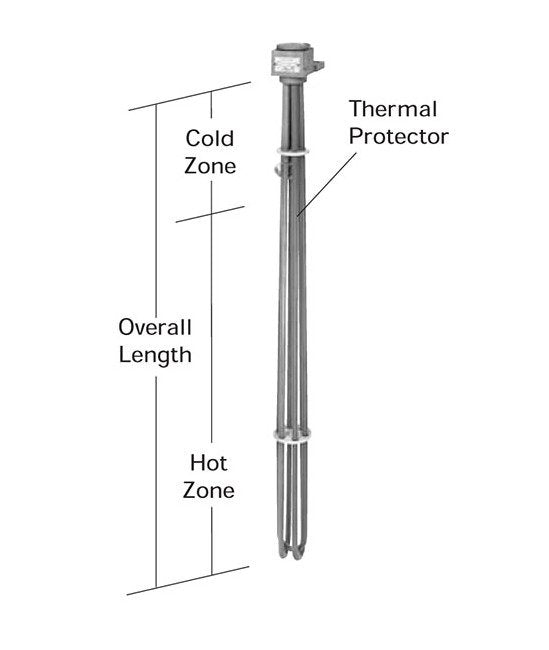

Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
10.0 Pound
Specifications Volts
120 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
10.0 lbs | 4.5 kg
