3HX Series PTFE Heaters - 3 Element Fluoropolymer Immersion
3HX Series PTFE Heaters - 3 Element Fluoropolymer Immersion
SKU:HEA-3796e9
Experience superior heating performance with our 3HX Series PTFE Heaters - ideal for industrial applications.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters - 3 Element Fluoropolymer Immersion
$349.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters - 3 Element Fluoropolymer Immersion
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters offer unparalleled performance in industrial heating applications. With a robust design featuring 3 elements and 2000W power, these heaters ensure efficient heat transfer in aggressive chemical environments. They come with replaceable thermal protectors for added safety. The standard polypropylene guard provides protection, while the optional PTFE guard is recommended for high-temperature solutions. Certified by CE, CSA, and UL, these heaters meet stringent industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX29G

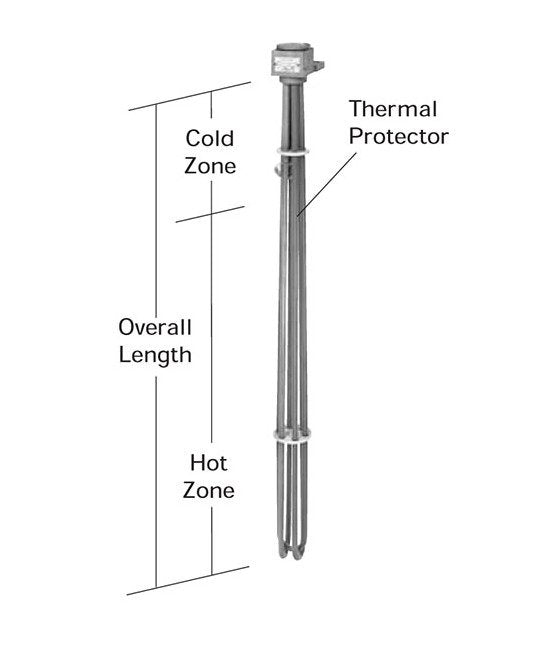

Specifications Hot Zone
22 " | 559 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
12.0 Pound
Specifications Volts
240 V
Specifications Watts
2000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
12.0 lbs | 5.4 kg
