3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heater
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heater
SKU:HEA-7ea66c
Efficient 3-element PTFE heaters for industrial use. Replaceable thermal protector and optional PTFE guards for durability and high-temperature solutions. CE, CSA, UL Listed certified.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heater
$499.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heater
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters offer reliable and efficient heating solutions for various applications. With a power of 5000 Watts and precise watt density of 10 W/in², these immersion heaters are designed for industrial use. They come with a replaceable thermal protector offering options for different temperature solutions up to 250°F. Manufactured by Process Technology, these heaters meet CE, CSA, and UL Listed certifications, ensuring quality and safety. Recommended for chromic acid and high-temperature solutions, the optional PTFE guards enhance durability and performance, making these heaters ideal for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX59G

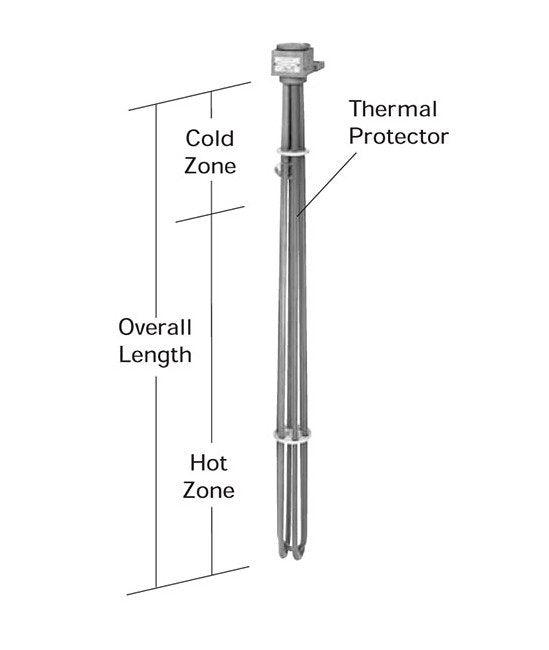

Specifications Hot Zone
48 " | 1219 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
59 " | 1499 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
20.0 Pound
Specifications Volts
480 V
Specifications Watts
5000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
