3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heaters
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heaters
SKU:HEA-decfc1
Efficient 3 Element PTFE Heaters for industrial applications, featuring 4000W power output and thermal overload protection options. CE, CSA, UL Listed.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heaters
$299.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters - Three Element Fluoropolymer Immersion Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters provide efficient heating solutions for industrial applications. With a power output of 4000W and excellent heat distribution, these heaters are ideal for processes requiring precise temperature control. The heaters come with options for thermal overload protection to ensure safe operation. Guards, including recommended PTFE guards, are available separately. Certified by CE, CSA, and UL Listed, these heaters are manufactured by Process Technology, meeting high industry standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX47G

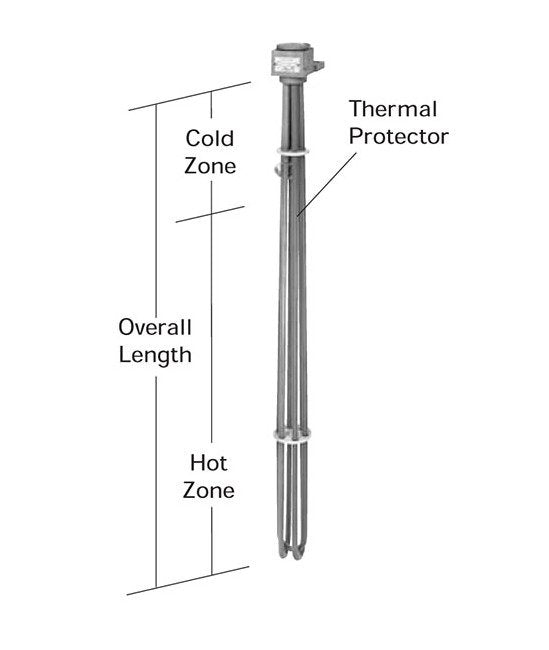

Specifications Hot Zone
39 " | 991 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
47 " | 1194 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
17.0 Pound
Specifications Volts
240 V
Specifications Watts
4000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
17.0 lbs | 7.7 kg
