3HX Series PTFE Heaters with 3 Elements
3HX Series PTFE Heaters with 3 Elements
SKU:HEA-07744d
High-performance 3-element PTFE Heaters for industrial use, featuring thermal protection options and PTFE guards. CE, CSA, UL certified.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
3HX Series PTFE Heaters with 3 Elements
$289.99
Quantity: 1
Claim Your Seller Account
3HX Series PTFE Heaters with 3 Elements
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

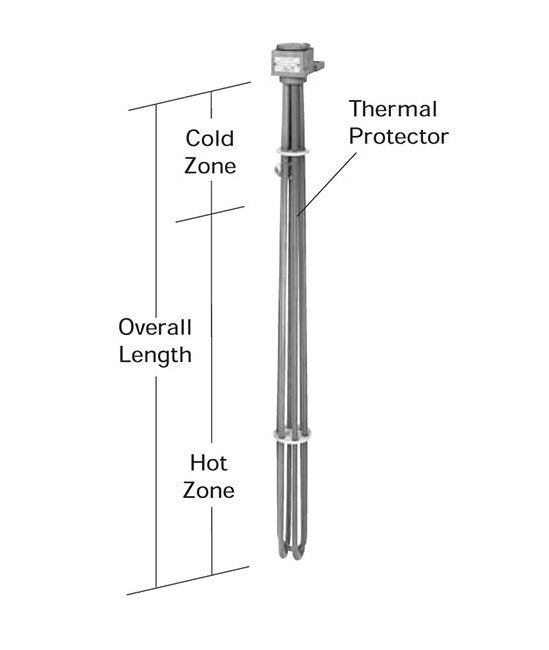

The 3HX Series 3 Element Fluoropolymer (PTFE) Heaters are designed for industrial applications requiring efficient heating solutions. With a power output of 1000 Watts and a Watt Density of 10 W/in², these heaters operate at 240 Volts and feature a hot zone length of 10" (254 mm). The PTFE material ensures excellent resistance to corrosive environments. Choose from different thermal overload protection options based on your solution's temperature requirements. Guards are essential for safety; opt for PTFE guards for extreme conditions. Certified by CE, CSA, and UL, these heaters meet stringent quality standards.
Product Specifications
Specifications Certifications
CE | CSA | UL Listed
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
HX/3HX17G
Specifications Hot Zone
10 " | 254 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Number Of Elements
3
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HX Series
Specifications Shipping Weight
10.0 Pound
Specifications Volts
240 V
Specifications Watts
1000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
10.0 lbs | 4.5 kg
