3HXO Series Fluoropolymer Heaters - Multi Element PTFE Heaters
3HXO Series Fluoropolymer Heaters - Multi Element PTFE Heaters
SKU:HEA-c5c5ad
Efficient 9000W Fluoropolymer (PTFE) Heaters with thermal protection up to 250°F. CE and UL certified for safety.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
3HXO Series Fluoropolymer Heaters - Multi Element PTFE Heaters
$849.99
Quantity: 1
Claim Your Seller Account
3HXO Series Fluoropolymer Heaters - Multi Element PTFE Heaters
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

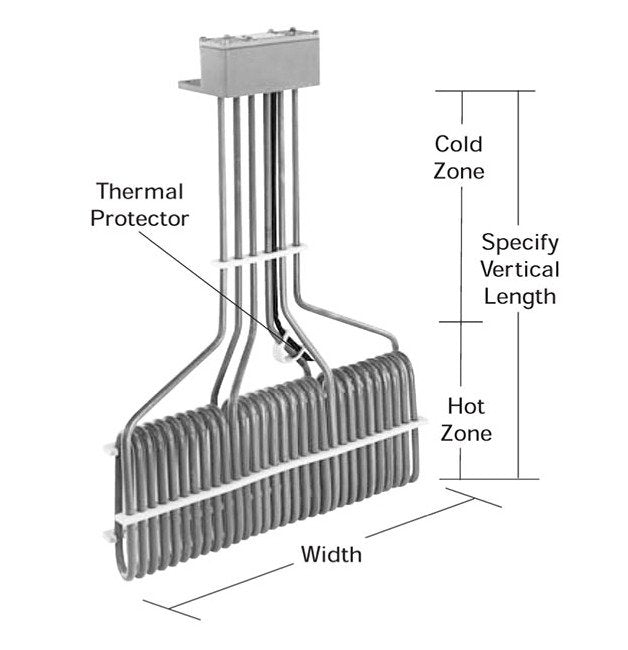

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters provide reliable and efficient heating solutions for a wide range of applications. With a power output of 9000W and thermal protection options suitable for solutions up to 250°F, these heaters are designed for performance and safety. The fluoropolymer (PTFE) material ensures compatibility with corrosive substances and high-temperature environments. Certified by CE and UL, manufactured by Process Technology, these heaters meet stringent quality and safety standards, making them ideal for industrial and institutional use.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-16-23G
Specifications Hot Zone
16 " | 406 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
23 " | 584 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
36.0 Pound
Specifications Volts
480 V
Specifications Watts
9000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
36.0 lbs | 16.3 kg
Specifications Width
13 " | 330 mm
