The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters by Process Technology are versatile and efficient electric immersion heaters designed for industrial applications. Available in both single and three phase options, these heaters come with various thermal protector choices for different solution temperatures. The Fluoropolymer (PTFE) material ensures excellent chemical resistance, making them ideal for use with chromic acid and high-temperature solutions. With options for replaceable and resettable thermal protectors, these heaters provide reliable heating while maintaining safety standards. Guard options include polypropylene as standard and Fluoropolymer (PTFE) guards for specialized applications. CE and UL Listed certifications guarantee quality and compliance.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO11-06-11G

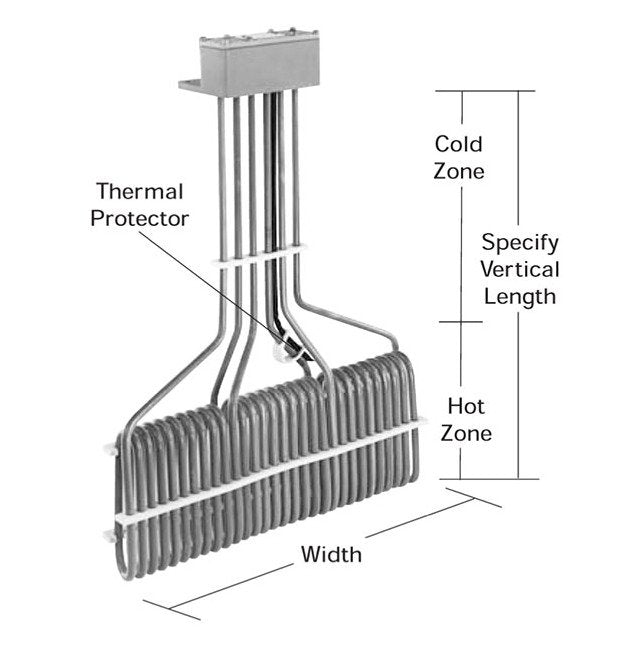

Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
20.0 Pound
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
Specifications Width
11 " | 279 mm
