3HXO Series Fluoropolymer (PTFE) Electric Heaters
3HXO Series Fluoropolymer (PTFE) Electric Heaters
SKU:HEA-a27f4f
Dependable 3HXO Series Fluoropolymer (PTFE) Heaters by Process Technology with up to 4500W power, offering reliable thermal protection for industrial applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
3HXO Series Fluoropolymer (PTFE) Electric Heaters
$299.99
Quantity: 1
Claim Your Seller Account
3HXO Series Fluoropolymer (PTFE) Electric Heaters
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

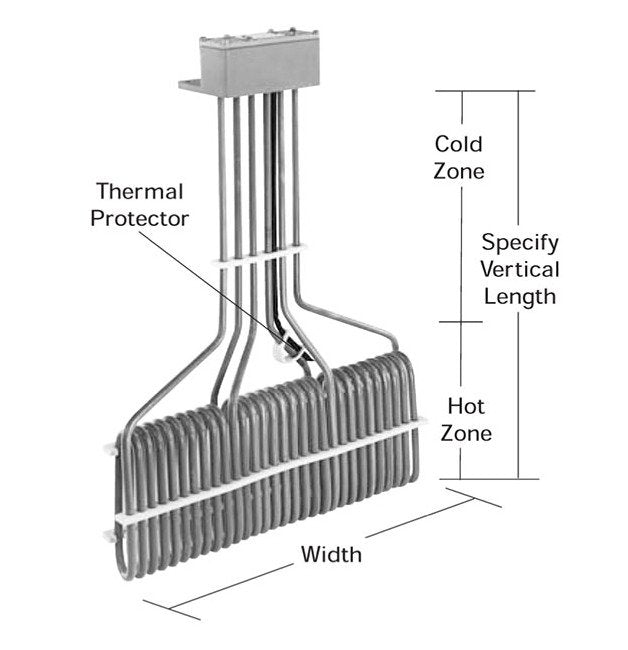

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters by Process Technology are dependable electric immersion heaters designed for industrial applications. With options for single or three-phase connectivity, these heaters offer up to 4500W of power with a watt density of 10 W/in². They come with replaceable thermal protectors ensuring safe operation up to 250°F, making them ideal for a range of solutions. Recommended for environments with chromic acid or temperatures exceeding 180°F, the heaters feature CE and UL Listed certifications, ensuring top-notch safety standards. Guards sold separately.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO11-9.5-17G
Specifications Hot Zone
9.5 " | 238 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
21.0 Pound
Specifications Volts
240 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
11 " | 279 mm
