3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element, 18,000 W, 240V
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element, 18,000 W, 240V
SKU:HEA-199ae7
Powerful 18,000W Fluoropolymer (PTFE) Heaters for industrial heating applications. CE, UL Listed. Safeguarded with thermal protectors.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element, 18,000 W, 240V
$899.99
Quantity: 1
Claim Your Seller Account
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element, 18,000 W, 240V
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters are expertly designed for efficient heating in industrial settings. With a power rating of 18,000 watts and a watt density of 10 W/in², these heaters deliver consistent performance. Choose from single or three-phase options and safeguard your operations with replaceable thermal protectors. Manufactured by Process Technology, these heaters meet CE and UL Listed certifications, ensuring top-notch quality and safety standards. Upgrade to Fluoropolymer (PTFE) guards for enhanced protection against corrosive solutions.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-29-40G

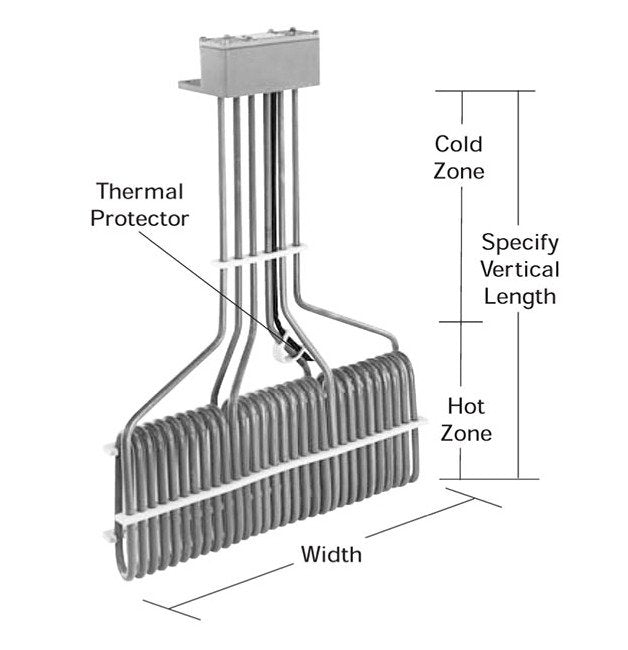

Specifications Hot Zone
29 " | 737 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
54.0 Pound
Specifications Volts
240 V
Specifications Watts
18,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
54.0 lbs | 24.5 kg
Specifications Width
13 " | 330 mm
