3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element Electric Immersion
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element Electric Immersion
SKU:HEA-d5778d
Industrial-grade 6000W Fluoropolymer (PTFE) Heaters with replaceable thermal protectors, ideal for demanding environments.
Regular price
$449.99
Regular price
Sale price
$449.99
Unit price
per
Initiate Order
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element Electric Immersion
$449.99
Quantity: 1
Claim Your Seller Account
3HXO Series Fluoropolymer (PTFE) Heaters - Multi Element Electric Immersion
$449.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

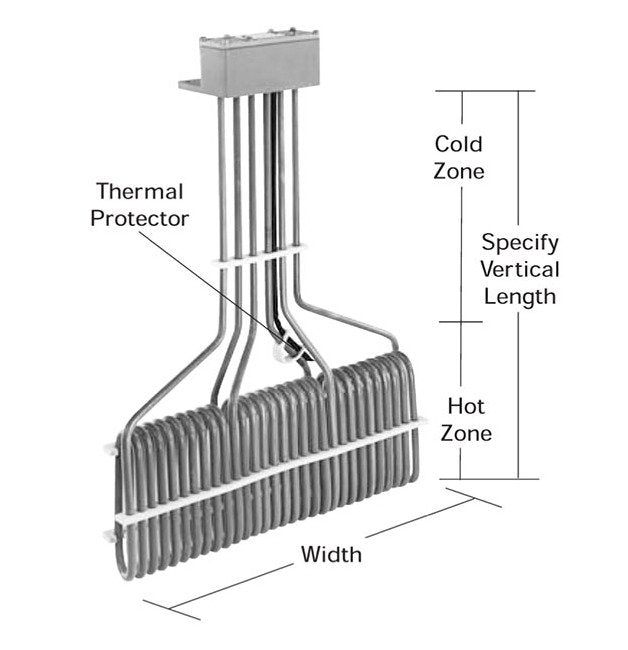

The 3HXO Series Fluoropolymer (PTFE) Heaters are industrial-grade electric immersion heaters designed for efficient heat transfer in demanding environments. With a power rating of 6000W and a Watt Density of 10 W/in², these heaters feature a robust construction using Fluoropolymer (PTFE) material, ensuring excellent chemical resistance. Available in both single and three-phase options, these heaters come with replaceable thermal protectors offering solutions up to 250°F. Recommended for applications with chromic acid and solutions exceeding 180°F, these heaters can be equipped with optional Fluoropolymer guards for enhanced protection. Manufactured by Process Technology, these UL Listed heaters are engineered to deliver reliable performance in industrial processes.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-10.5-17G
Specifications Hot Zone
10.5 " | 263 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
21.0 Pound
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
13 " | 330 mm
