3HXO Series Fluoropolymer (PTFE) Heaters - Process Technology
3HXO Series Fluoropolymer (PTFE) Heaters - Process Technology
SKU:HEA-c9d2e8
Maximize heating efficiency with 3HXO Series Fluoropolymer (PTFE) Heaters from Process Technology. Reliable performance for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
3HXO Series Fluoropolymer (PTFE) Heaters - Process Technology
$599.99
Quantity: 1
Claim Your Seller Account
3HXO Series Fluoropolymer (PTFE) Heaters - Process Technology
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

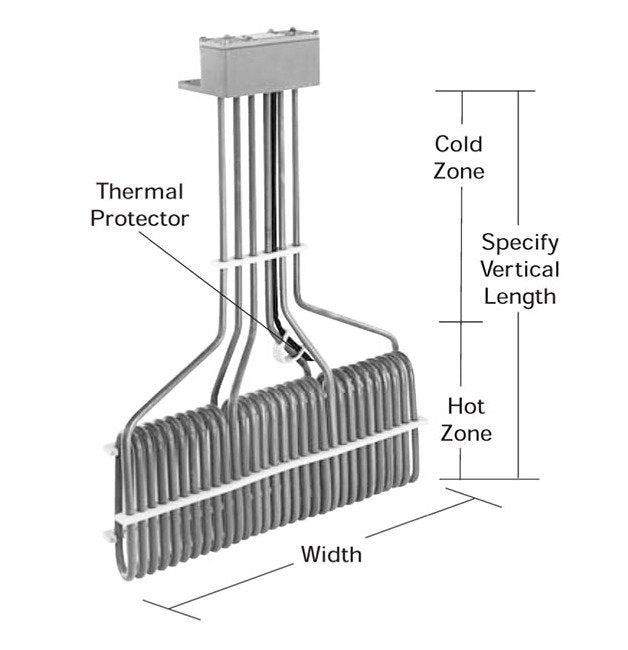

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters from Process Technology are designed for superior heating performance in industrial settings. With options for single or three-phase power and a range of thermal protectors, these heaters deliver reliable and efficient operation. The fluoropolymer (PTFE) material ensures compatibility with a variety of solutions, making them ideal for applications requiring resistance to corrosive substances and high temperatures. The inclusion of thermal overload protection and optional guards further enhances safety and durability, meeting stringent industry standards.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-25-35G
Specifications Hot Zone
25 " | 635 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
48.0 Pound
Specifications Volts
480 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
48.0 lbs | 21.8 kg
Specifications Width
13 " | 330 mm
