3HXO Series Multi Element Fluoropolymer (PTFE) Heaters - Process Technology
3HXO Series Multi Element Fluoropolymer (PTFE) Heaters - Process Technology
SKU:HEA-ffa897
High-performance PTFE heaters with 12,000W power, thermal overload protection, and chemical resistance for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
3HXO Series Multi Element Fluoropolymer (PTFE) Heaters - Process Technology
$899.99
Quantity: 1
Claim Your Seller Account
3HXO Series Multi Element Fluoropolymer (PTFE) Heaters - Process Technology
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

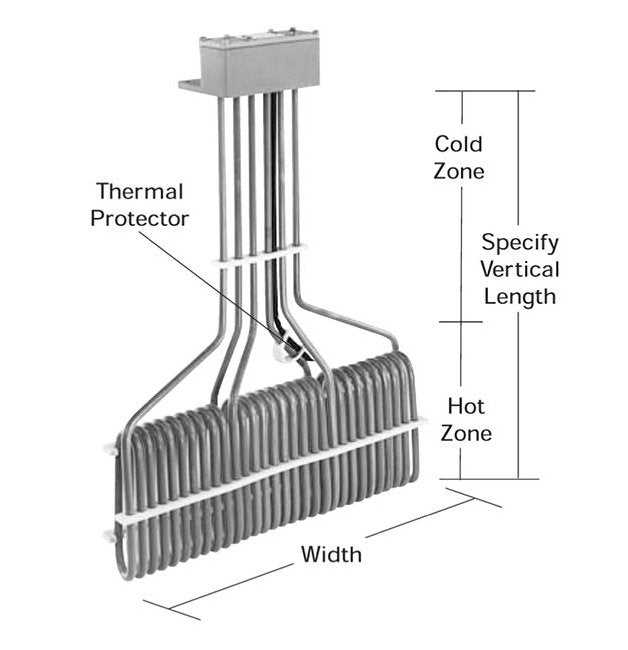

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters by Process Technology offer exceptional performance for industrial heating applications. With a power output of 12,000W and advanced thermal overload protection options, these heaters ensure safe and efficient operation. The fluoropolymer (PTFE) construction provides excellent chemical resistance, making them ideal for corrosive environments. Certified to CE and UL standards, these heaters are designed for reliability and compliance with industry-specific regulations.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-20.5-29G
Specifications Hot Zone
20.5 " | 513 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
42.0 Pound
Specifications Volts
480 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
42.0 lbs | 19.1 kg
Specifications Width
13 " | 330 mm
