3HXO Series Multi Element PTFE Heaters
3HXO Series Multi Element PTFE Heaters
SKU:HEA-c50c8e
Efficient 3HXO Series PTFE Heaters with optional thermal overload protection, CE & UL Listed for industrial applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
3HXO Series Multi Element PTFE Heaters
$279.99
Quantity: 1
Claim Your Seller Account
3HXO Series Multi Element PTFE Heaters
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

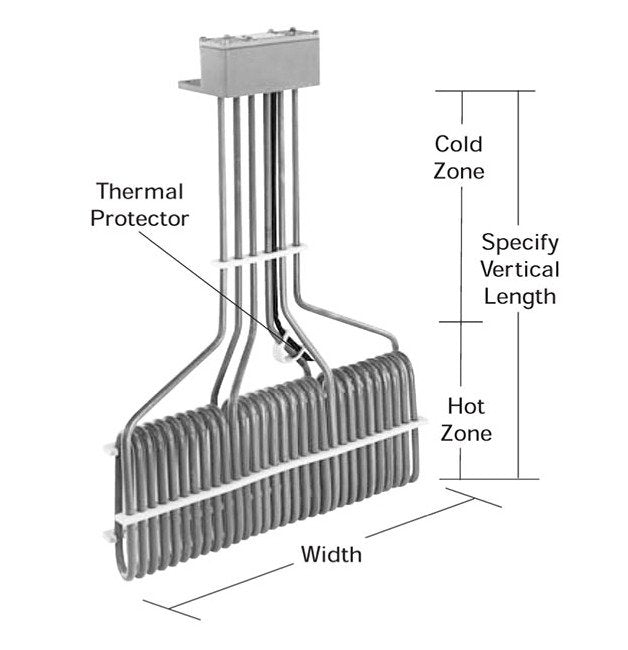

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters offer superior heating performance with customizable thermal overload protection options. Designed for both single and three-phase applications, these heaters boast 1500W power with precise watt density control. Featuring a durable Fluoropolymer (PTFE) construction, they ensure exceptional chemical resistance, ideal for solutions up to 250°F. With CE and UL Listed certifications, these Process Technology heaters prioritize safety and efficiency in industrial heating applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO10.5-06-11G
Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
15.0 Pound
Specifications Volts
120 V
Specifications Watts
1500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
15.0 lbs | 6.8 kg
Specifications Width
10-1/2 " | 263 mm
