3HXO Series PTFE Heaters
3HXO Series PTFE Heaters
SKU:HEA-c96ef0
Upgrade to the versatile 3HXO Series PTFE Heaters for reliable heating with advanced thermal protection options.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
3HXO Series PTFE Heaters
$549.99
Quantity: 1
Claim Your Seller Account
3HXO Series PTFE Heaters
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

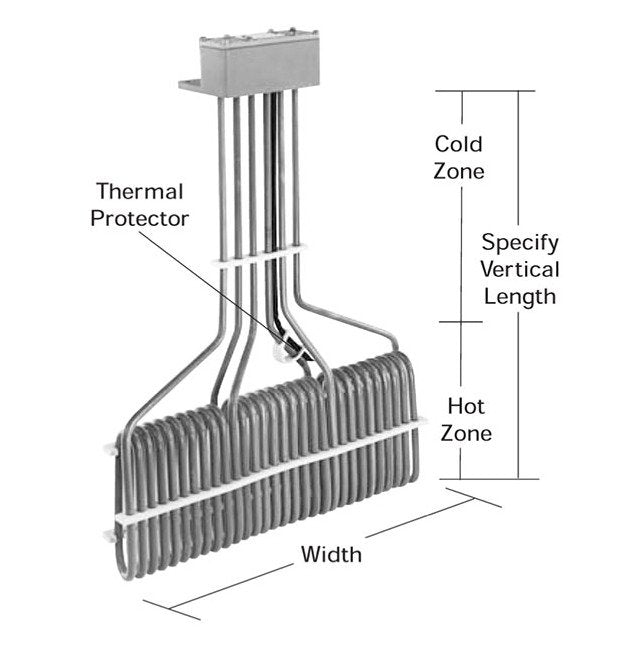

Enhance your heating processes with the 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters. These heaters boast a durable construction with a Wattage of 18,000 W, ensuring efficient heat transfer. With various thermal overload protection options available, including PTFE guards for high-temperature solutions, these heaters are versatile and reliable. Certified by CE and UL Listed, they meet stringent quality standards. Designed by Process Technology, these heaters offer a safe and efficient solution for your heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-29-40G
Specifications Hot Zone
29 " | 737 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
40 " | 1016 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
54.0 Pound
Specifications Volts
480 V
Specifications Watts
18,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
54.0 lbs | 24.5 kg
Specifications Width
13 " | 330 mm
