The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters are versatile electric immersion heaters designed for a wide range of industrial applications. With a robust construction featuring a PTFE material, these heaters offer excellent resistance to chemical corrosion, making them ideal for use in demanding environments. The heaters come in both single and three-phase options, with customizable thermal overload protection for enhanced safety. The inclusion of replaceable and resettable thermal protectors ensures reliable operation while guarding against overheating. Certified by CE and UL, these heaters meet high-quality standards set by Process Technology, ensuring efficiency and durability in heating solutions.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO11-06-11G

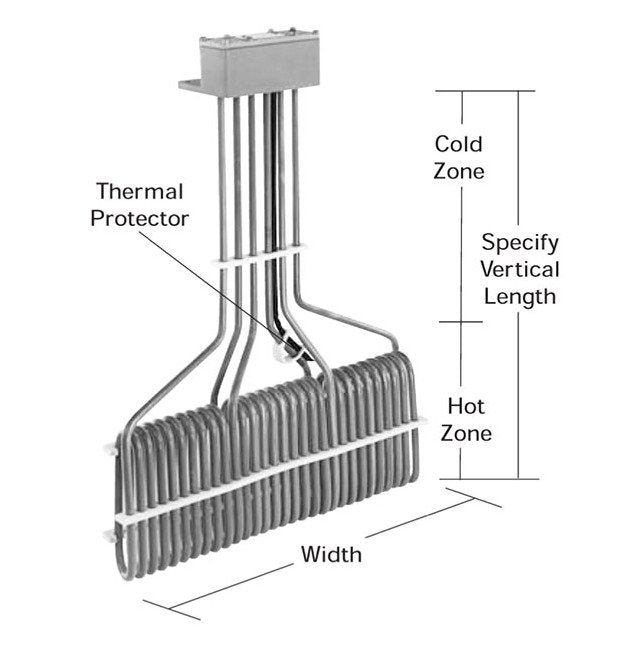

Specifications Hot Zone
6 " | 152 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
11 " | 279 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
20.0 Pound
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
Specifications Width
11 " | 279 mm
