The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters offer reliable heating solutions for a wide range of applications. With a power output of 15000W and various thermal protector options, these heaters ensure safe and efficient operation. Designed with a Fluoropolymer (PTFE) hot zone and optional guards for different chemical solutions, they provide excellent resistance and durability. Certified by CE and UL Listed, these Process Technology heaters meet high industry standards for quality and performance.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-25-35G

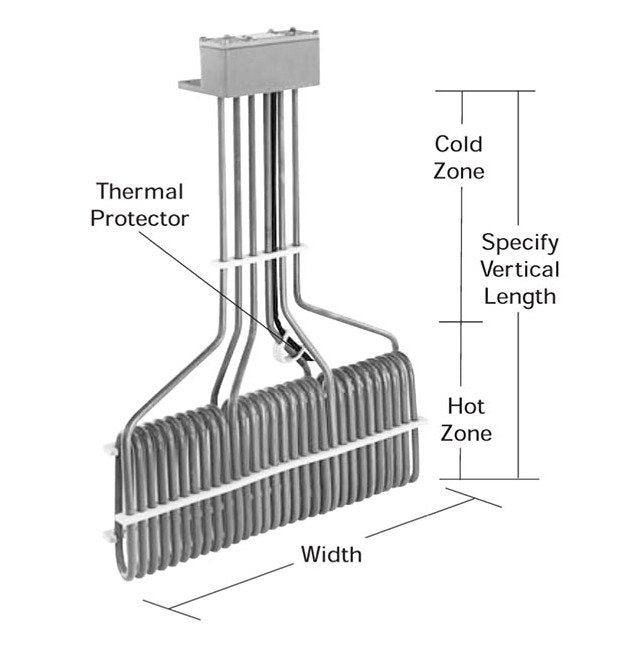

Specifications Hot Zone
25 " | 635 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
35 " | 889 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
48.0 Pound
Specifications Volts
240 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
48.0 lbs | 21.8 kg
Specifications Width
13 " | 330 mm
