The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters offer exceptional heating performance for a wide range of industrial applications. With options for single or three-phase configurations and thermal overload protection variants, these heaters ensure efficient and safe operation. Manufactured by Process Technology, these heaters are CE and UL Listed, meeting stringent quality and safety standards. The option for replaceable thermal protectors allows for flexibility based on solution temperatures, making them ideal for various environments. Recommended fluoropolymer guards ensure compatibility with corrosive solutions above 180°F, providing longevity and durability.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-10.5-17G

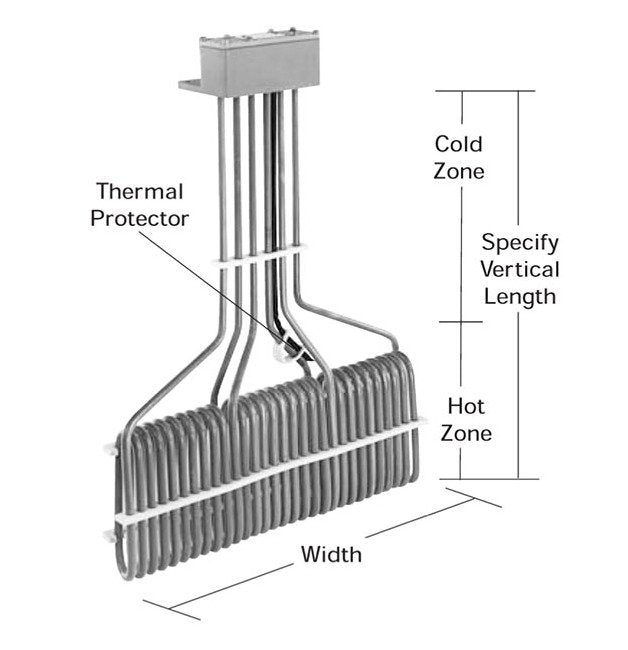

Specifications Hot Zone
10.5 " | 263 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
21.0 Pound
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
13 " | 330 mm
