3HXO Series PTFE Heaters - Multi Element Fluoropolymer
3HXO Series PTFE Heaters - Multi Element Fluoropolymer
SKU:HEA-c5945a
High-performance 4500W 480V PTFE Heaters with 10 W/in² watt density, ideal for industrial applications. CE and UL certified.
Regular price
$579.00
Regular price
Sale price
$579.00
Unit price
per
Initiate Order
3HXO Series PTFE Heaters - Multi Element Fluoropolymer
$579.00
Quantity: 1
Claim Your Seller Account
3HXO Series PTFE Heaters - Multi Element Fluoropolymer
$579.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

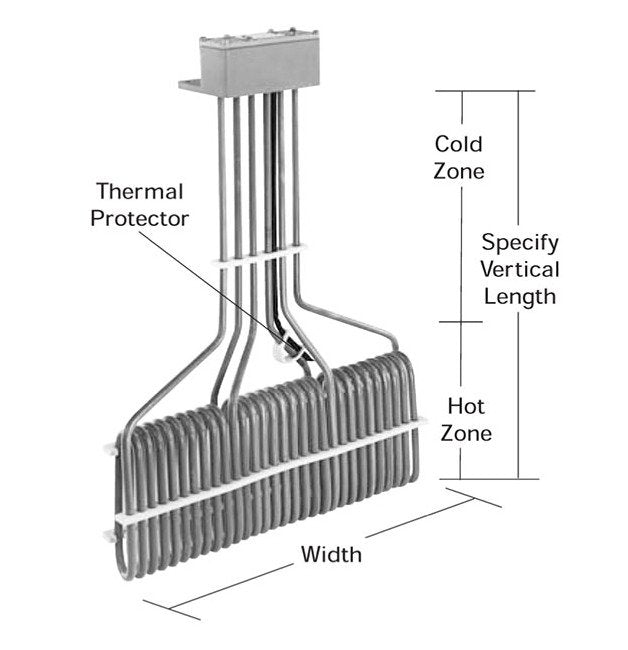

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters are designed for superior heating performance in industrial applications. With a power output of 4500W at 480V, these heaters feature a high watt density of 10 W/in², ensuring efficient heat transfer. The hot zone measures 9.5" for precise heating, while the overall build with Fluoropolymer (PTFE) material guarantees durability and resistance to corrosive chemicals. The options available with replaceable thermal protectors cater to different solution temperatures, providing flexibility and safety. Certified by CE and UL, these heaters comply with industry standards, making them a reliable choice for various heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO11-9.5-17G
Specifications Hot Zone
9.5 " | 238 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
17 " | 432 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
21.0 Pound
Specifications Volts
480 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
11 " | 279 mm
