3HXO Series PTFE Heaters - Multi Element Immersion Heaters
3HXO Series PTFE Heaters - Multi Element Immersion Heaters
SKU:HEA-b0f5f2
High-performance 12,000W PTFE heaters with thermal overload protection for precise industrial heating applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
3HXO Series PTFE Heaters - Multi Element Immersion Heaters
$699.99
Quantity: 1
Claim Your Seller Account
3HXO Series PTFE Heaters - Multi Element Immersion Heaters
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

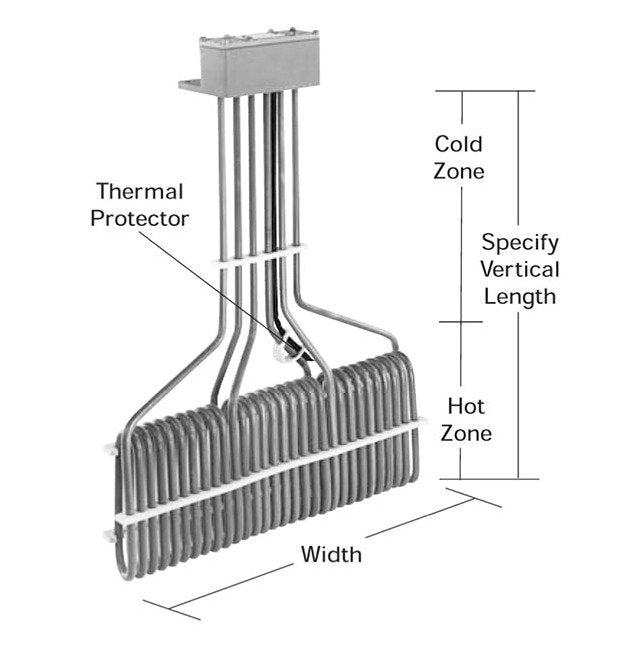

The 3HXO Series Multi Element Fluoropolymer (PTFE) Heaters are expertly designed for industrial applications requiring precise heating. Featuring a robust construction with thermal overload protection options, these heaters ensure safe and efficient operation. With a wattage of 12,000W, precise control, and a wide operating temperature range, they are ideal for various solutions. The inclusion of replaceable thermal protectors and compatibility with fluoropolymer guards make these heaters versatile and compliant with industry standards.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXO13-20.5-29G
Specifications Hot Zone
20.5 " | 513 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Overall Length
29 " | 737 mm
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXO Series
Specifications Shipping Weight
42.0 Pound
Specifications Volts
240 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
42.0 lbs | 19.1 kg
Specifications Width
13 " | 330 mm
