3HXOL Series Fluoropolymer L-Shaped Heaters
3HXOL Series Fluoropolymer L-Shaped Heaters
SKU:HEA-f0d739
High-performance Fluoropolymer (PTFE) L-Shaped Heaters for industrial use. Thermal protection included, guards recommended separately.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
3HXOL Series Fluoropolymer L-Shaped Heaters
$789.99
Quantity: 1
Claim Your Seller Account
3HXOL Series Fluoropolymer L-Shaped Heaters
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

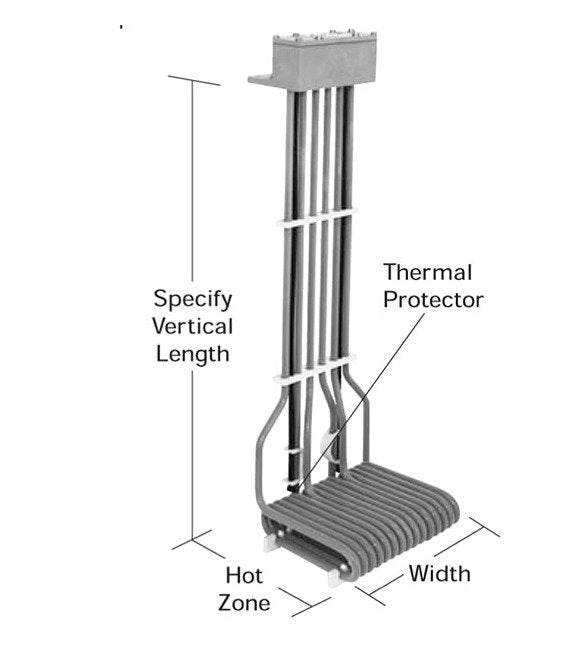

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters offer superior heating performance, with options for single or three-phase operation. Designed for industrial applications, these heaters come with a standard thermal protector and customizable thermal overload protection. The durable Fluoropolymer (PTFE) material ensures excellent chemical resistance, making them ideal for challenging environments. Recommended guards provide added safety and are available separately.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-19-R*-G
Specifications Hot Zone
19 " | 483 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
22.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
Specifications Width
10-1/2 " | 263 mm
