3HXOL Series Fluoropolymer PTFE Heaters
3HXOL Series Fluoropolymer PTFE Heaters
SKU:HEA-062171
Efficient 3HXOL Series Fluoropolymer (PTFE) Heaters for precise temperature control. CE and UL Listed for safety.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
3HXOL Series Fluoropolymer PTFE Heaters
$799.99
Quantity: 1
Claim Your Seller Account
3HXOL Series Fluoropolymer PTFE Heaters
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

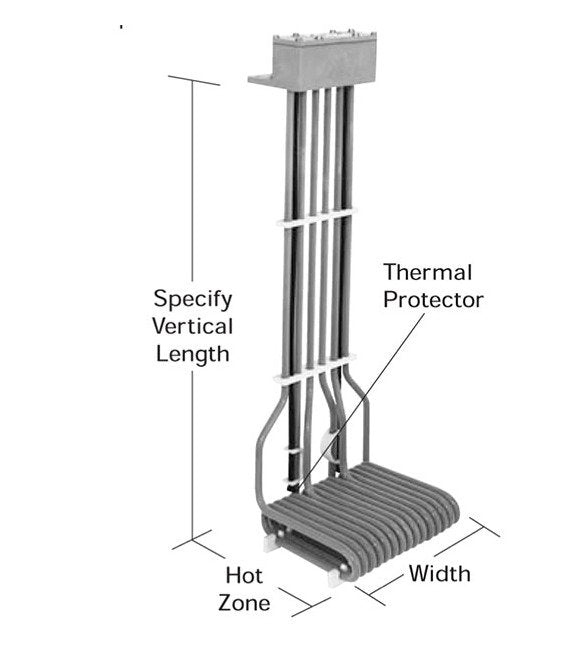

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters offer advanced heating solutions ideal for a wide range of industrial applications. Designed for efficiency, these heaters boast a durable Fluoropolymer construction with options for thermal overload protection. With a high watt density and reliable performance, they ensure precise temperature control. Safety is paramount, with recommended guards available for different chemicals and temperatures. Certified by CE and UL Listed, these heaters prioritize quality and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-30-R*-G
Specifications Hot Zone
30 " | 762 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
42.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
42.0 lbs | 19.1 kg
Specifications Width
10-1/2 " | 263 mm
