3HXOL Series L-Shaped Fluoropolymer Heaters
3HXOL Series L-Shaped Fluoropolymer Heaters
SKU:HEA-411dff
Powerful 3000W 3HXOL Series L-Shaped Fluoropolymer Heater with versatile thermal protection options for safe industrial heating applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
3HXOL Series L-Shaped Fluoropolymer Heaters
$399.99
Quantity: 1
Claim Your Seller Account
3HXOL Series L-Shaped Fluoropolymer Heaters
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

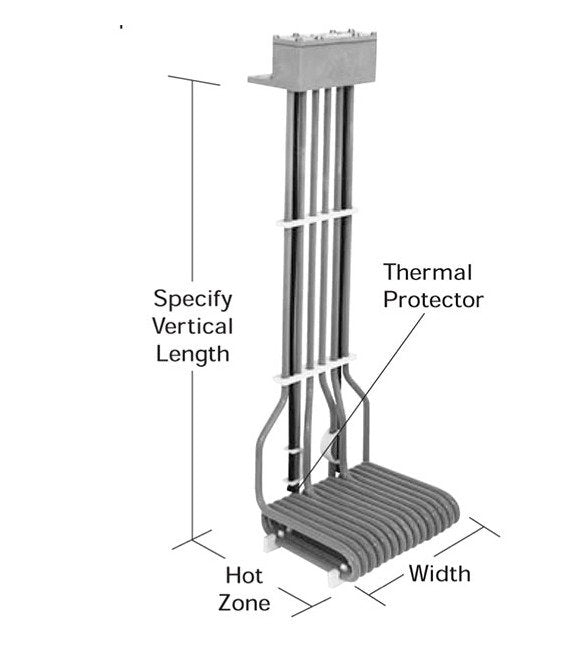

Enhance your industrial heating solutions with the 3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters by Process Technology. This robust heater boasts a power output of 3000W and features a durable Fluoropolymer (PTFE) material construction, making it ideal for applications requiring resistance to high temperatures and chemicals. With multiple thermal protection options available, including resettable thermal protectors for varying temperature ranges, this heater ensures safe and efficient operation. Designed for versatility, this heater comes with a standard vertical length of 18 inches, allowing for customizable installations. Whether you need heat for chromic acid or solutions exceeding 180°F, the 3HXOL Series Heater is your reliable solution for precise and consistent heating performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL08-13-R*-G
Specifications Hot Zone
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
20.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
Specifications Width
8 " | 203 mm
