3HXOL Series L-Shaped PTFE Heaters
3HXOL Series L-Shaped PTFE Heaters
SKU:HEA-c38fef
Efficient 3HXOL Series L-Shaped PTFE Heaters for industrial heating applications with precise temperature control options. CE and UL Listed for safety.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
3HXOL Series L-Shaped PTFE Heaters
$899.99
Quantity: 1
Claim Your Seller Account
3HXOL Series L-Shaped PTFE Heaters
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

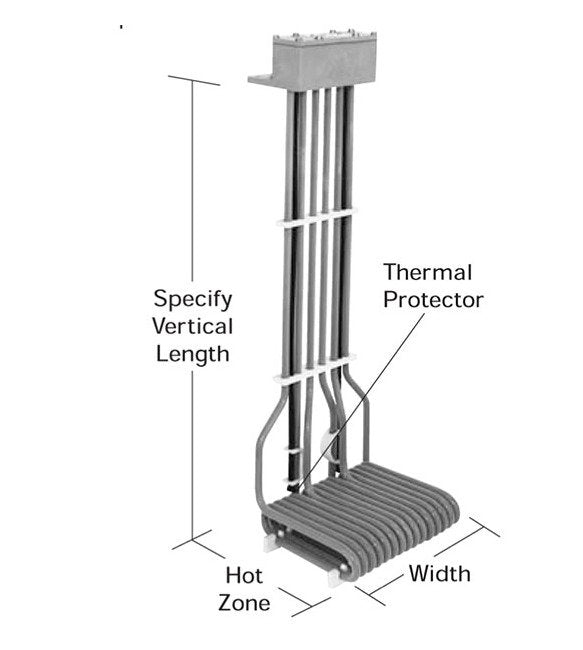

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial settings. With a power rating of 12,000 W and a durable construction, these heaters deliver consistent performance. The replaceable thermal protectors offer flexibility with temperature control options suitable for various solutions. Certified by CE and UL Listed, these heaters meet stringent safety and quality standards. Guards are available separately, with a recommendation for Fluoropolymer (PTFE) guards for specific applications exceeding 180°F. Ideal for industries requiring reliable heating solutions with exceptional performance and compliance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-30-R*-G
Specifications Hot Zone
30 " | 762 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
42.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
12,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
42.0 lbs | 19.1 kg
Specifications Width
10-1/2 " | 263 mm
