3HXOL Series L-Shaped PTFE Heaters
3HXOL Series L-Shaped PTFE Heaters
SKU:HEA-5fd20d
High-performance 15000W 3HXOL Series L-Shaped PTFE Heaters with precise control, safety features, and durable construction for industrial applications.
Regular price
$679.99
Regular price
Sale price
$679.99
Unit price
per
Initiate Order
3HXOL Series L-Shaped PTFE Heaters
$679.99
Quantity: 1
Claim Your Seller Account
3HXOL Series L-Shaped PTFE Heaters
$679.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

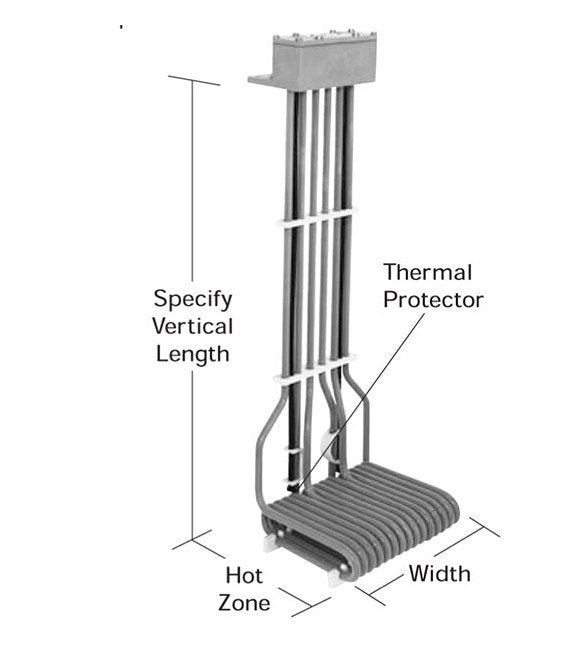

The 3HXOL Series L-Shaped PTFE Heaters are designed for efficient and reliable heating in industrial applications. With a multi-element configuration and wattage of 15000W, these heaters offer precise control and uniform heat distribution. Equipped with replaceable thermal protectors for various solution temperatures, they ensure safe operation. The Fluoropolymer (PTFE) construction not only enhances durability but also makes them suitable for challenging environments. Recommended guards provide additional safety, with options for different temperature conditions. CE and UL Listed, these heaters meet stringent quality standards, making them ideal for diverse heating needs.
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-36-R*-G
Specifications Hot Zone
36 " | 914 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
48.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
48.0 lbs | 21.8 kg
Specifications Width
10-1/2 " | 263 mm
