The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters by Process Technology are expertly designed to deliver reliable and efficient heating solutions. With a power output of 6000W and a durable Fluoropolymer construction, these heaters offer superior heat transfer and resistance to harsh chemicals. The integrated thermal protectors ensure safe operation, with options for different temperature ranges. Recommended guards provide additional safety, with Fluoropolymer guards ideal for corrosive environments. CE and UL Listed, these heaters meet stringent quality and safety standards for both commercial and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-19-R*-G

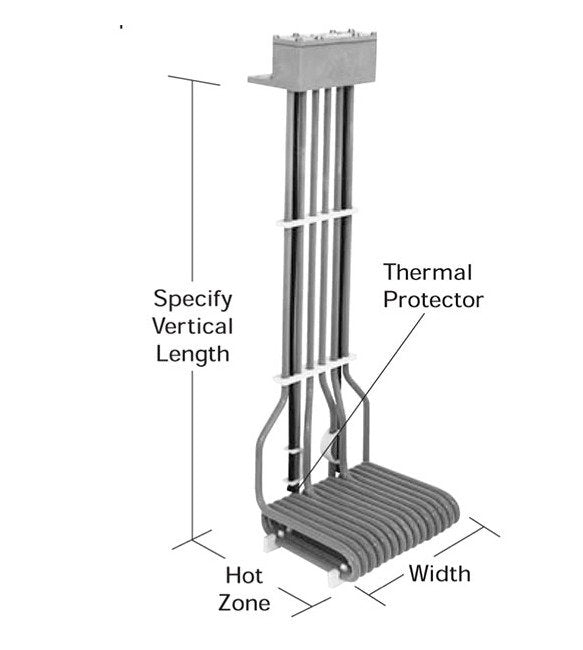

Specifications Hot Zone
19 " | 483 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
22.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
6000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
22.0 lbs | 10.0 kg
Specifications Width
10-1/2 " | 263 mm
