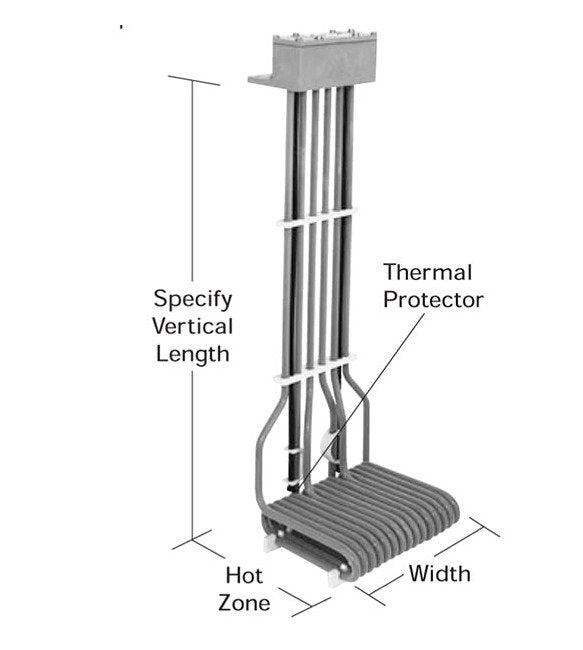

3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters
3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters
SKU:HEA-c78ae8
Powerful 15000 W Fluoropolymer (PTFE) Heaters, reliable with thermal protectors & CE/UL Listed
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters
$789.99
Quantity: 1
Claim Your Seller Account
3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HXOL Series Multi Element L-Shaped Fluoropolymer Heaters offer unparalleled heating efficiency and versatility for a wide range of industrial applications. With a power rating of 15000 W and voltages of 480 V, these heaters ensure rapid and uniform heat distribution. The durable Fluoropolymer (PTFE) construction guarantees exceptional chemical resistance, making them ideal for challenging environments. Equipped with replaceable thermal protectors for precise temperature control, these heaters prioritize safety and reliability. Recommended guards enhance protection, with Fluoropolymer (PTFE) options catering to corrosive solutions above 180°F (82°C). Manufactured by Process Technology, these heaters are CE and UL Listed for compliance and quality assurance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-36-R*-G
Specifications Hot Zone
36 " | 914 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
31 " | 787 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
48.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
15000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
48.0 lbs | 21.8 kg
Specifications Width
10-1/2 " | 263 mm
