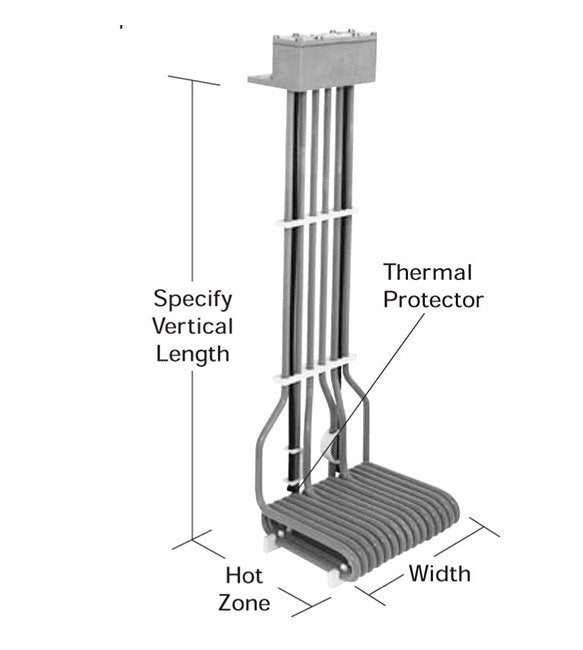

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters are designed for efficient heating in industrial applications. Featuring a robust construction with up to 4500W power capacity, these heaters ensure quick and uniform heat distribution. With options for thermal overload protection and customizable vertical lengths, they offer versatility and safety. Certified by CE and UL, these heaters come with polypropylene guards standard, while optional PTFE guards are recommended for demanding environments exceeding 180°F. Ideal for meeting stringent heating requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-11-R*-G
Specifications Hot Zone
11 " | 279 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
21.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
10-1/2 " | 263 mm
