3HXOL Series PTFE Heaters
3HXOL Series PTFE Heaters
SKU:HEA-72259c
Reliable 4500W PTFE Heaters with various thermal protector options and optional PTFE guards for enhanced safety. CE and UL Listed for quality assurance.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
3HXOL Series PTFE Heaters
$749.99
Quantity: 1
Claim Your Seller Account
3HXOL Series PTFE Heaters
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

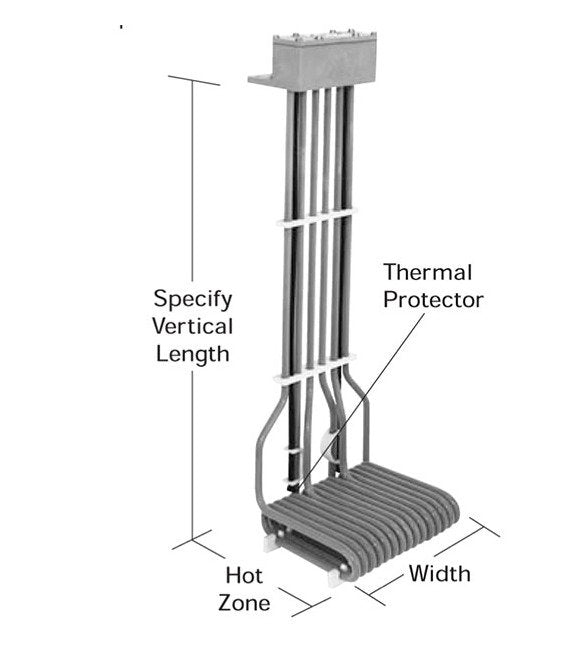

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters offer unparalleled efficiency and durability for industrial heating applications. With a power output of 4500W, these heaters ensure consistent and reliable heat transfer, making them ideal for a wide range of solutions. Featuring multiple thermal protector options and a CE and UL Listed certifications, these heaters prioritize safety and performance. The optional PTFE guards provide enhanced protection, especially for solutions above 180º F (82ºC). With precise dimensions and high-quality materials, these heaters from Process Technology are designed to meet the rigorous demands of institutional and industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-11-R*-G
Specifications Hot Zone
11 " | 279 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
35 " | 889 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
21.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
240 V
Specifications Watts
4500 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
21.0 lbs | 9.5 kg
Specifications Width
10-1/2 " | 263 mm
