3HXOL Series PTFE Heaters
3HXOL Series PTFE Heaters
SKU:HEA-43af4f
High-performance 3HXOL PTFE Heaters with customizable thermal protection for safe industrial heating.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
3HXOL Series PTFE Heaters
$899.99
Quantity: 1
Claim Your Seller Account
3HXOL Series PTFE Heaters
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

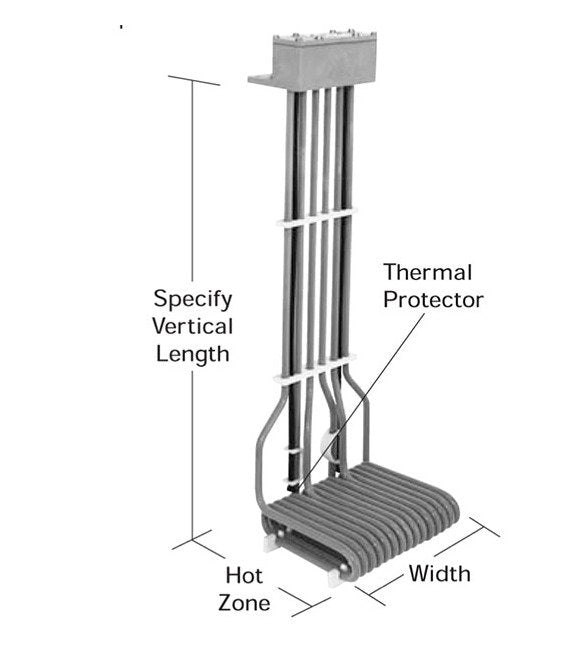

The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters are engineered for high-performance heating in industrial settings. With a power output of 18,000W and customizable options for thermal overload protection, these heaters ensure efficient and safe operations. The robust construction of Fluoropolymer (PTFE) material guarantees compatibility with aggressive solutions and elevated temperatures. Manufactured by Process Technology, these heaters come with certifications like CE and UL Listed, showcasing adherence to international quality standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL10.5-42-R*-G
Specifications Hot Zone
42 " | 1067 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
25 " | 635 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
54.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
18,000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
54.0 lbs | 24.5 kg
Specifications Width
10-1/2 " | 263 mm
