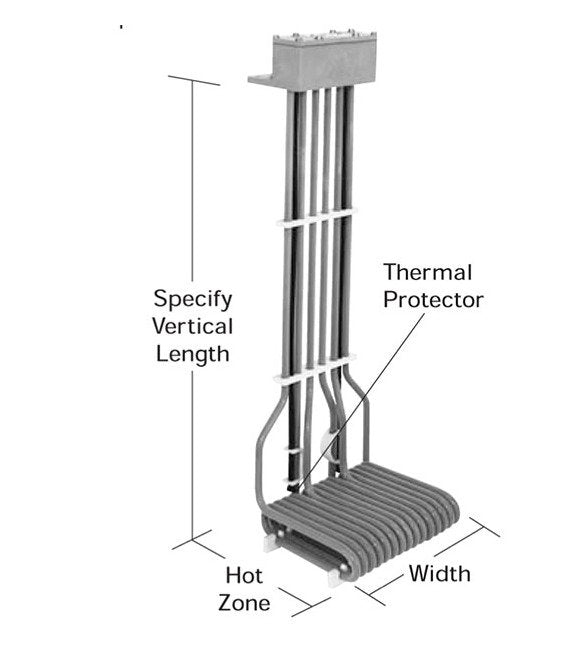

3HXOL Series PTFE Multi Element L-Shaped Heaters
3HXOL Series PTFE Multi Element L-Shaped Heaters
SKU:HEA-6a16dd
High-performance PTFE heaters for industrial applications. Options for thermal overload protection & CE/UL compliance.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
3HXOL Series PTFE Multi Element L-Shaped Heaters
$349.99
Quantity: 1
Claim Your Seller Account
3HXOL Series PTFE Multi Element L-Shaped Heaters
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 3HXOL Series Multi Element L-Shaped Fluoropolymer (PTFE) Heaters are designed for robust industrial heating applications. Available in both single and three-phase configurations, these heaters offer precise wattage options up to 3000W with a watt density of 10W/in². With a standard vertical length of 18 inches and a durable Fluoropolymer (PTFE) construction, these heaters ensure efficient and reliable heating performance. Additionally, the heaters come with various thermal overload protection options and comply with CE and UL Listed certifications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Certifications
CE | UL Listed
Specifications Element Type
Multi Element
Specifications Guards Recommended
Standard guard is polypropylene. Fluoropolymer (PTFE) guards recommended for chromic acid and solutions exceeding 180º F (82ºC).
Specifications Guard Model Number
3HXOL08-13-R*-G
Specifications Hot Zone
13 " | 330 mm
Specifications Manufacturer
Process Technology
Specifications Material
Fluoropolymer (PTFE)
Specifications Max Cold Zone
36 " | 914 mm
Specifications Options Available
Comes Standard with Replaceable thermal protector: P1: for solutions up to 180°F (82°C). | Resettable thermal protector: P2: for solutions up to 180°F (82°C). | Resettable thermal protector: P3: for solutions up to 250°F (121°C). | Resettable thermal protector: P8: for solutions up to 210°F (99°C).
Specifications Phase
Single | Three (Standard)
Specifications Series
3HXOL Series
Specifications Shipping Weight
20.0 Pound
Specifications Standard Vertical Length
18 " | 457 mm
Specifications Volts
480 V
Specifications Watts
3000 W
Specifications Watt Density
10 W/in² | 1.5 W/cm²
Specifications Weight
20.0 lbs | 9.1 kg
Specifications Width
8 " | 203 mm
