3in Bullet Resistant Fiberglass Conduit with Straight Socket
3in Bullet Resistant Fiberglass Conduit with Straight Socket
SKU:BRI-c4a051
Highly durable 3in Bullet Resistant Fiberglass Conduit for utmost physical protection. UL compliant & fire-resistant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
3in Bullet Resistant Fiberglass Conduit with Straight Socket
$129.99
Quantity: 1
Claim Your Seller Account
3in Bullet Resistant Fiberglass Conduit with Straight Socket
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

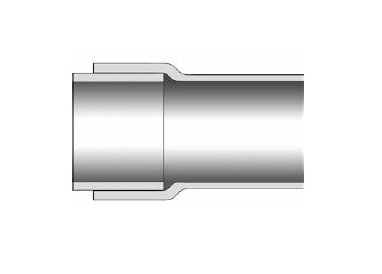

The 3-inch Nominal Size Extra Heavy Wall Bullet Resistant Fiberglass Conduit with Straight Socket provides the highest level of physical protection for underground applications. Manufactured by Champion Fiberglass®, Inc., this conduit features an integral bell and spigot design for secure connections. Made of reinforced thermosetting resin with an epoxy-based resin system, it meets UL standards, ensuring fire resistance and durability. With a temperature range of -60ºF to 250ºF, this conduit is suitable for Class 1 Div 2 & Class 1 Zone 2 Applications.
Product Specifications
Application
Highest level of physical protection, Class 1 Div 2 & Class 1 Zone 2 Applications
Dimesional Attributes Length L
10 ft
Dimesional Attributes Nominal Size
3 in
General Information
Fiberglass Conduit Specifications for Use Below GroundThe conduit shall be fiberglass conduit, also known as Reinforced Thermosetting Resin Conduit (RTRC), manufactured using the single circuit filament winding process. Multi circuit windings are not allowed. The conduit shall have a winding angle as close as possible to 54.75 degrees.The resin system shall be epoxy based, with no fillers, using an anhydride curing agent. The fiberglass shall consist of continuous E-glass roving. The conduit shall not contain any halogen compounds containing chlorine, bromine, fluorine and iodine in more than trace amounts when burning.Conduit and elbows shall be manufactured from the same resin/hardener/glass systems manufactured by the same filament wound system.Fiberglass conduit fittings and accessories shall be manufactured using one of two manufacturing procedures. The first method shall use the same process, methods, and components as used to manufacture the fiberglass conduit. The second method shall use the compression molding process, Sheet Molding Compound (SMC), for the manufacture of the finished component. The SMC material shall be a vinyl ester resin with +30% reinforcement of glass. The glass fibers should be approximately 1" in length. The SMC material shall be fire resistant to UL 2515.Conduit shall be integral bell and spigot or bonded coupling and spigot.Conduit, elbows and fittings are specified for use throughout a temperature range of -60ºF (-51ºC) to 250ºF (121ºC).Manufacturer shall have a current Certificate of Compliance, issued by an independent and accredited company, with an ISO 9001:2008 Quality Management System.
Specifications Brand
Champion Fiberglass®, Inc.
Specifications Color
Black
Specifications End Type
Bell End
Specifications Industry Standardscertifications
Underwriters Laboratories (UL)
Specifications Type
ID Aboveground Straight Conduit with Straight Socket
