3J-ND Dead Length Collet Chucks for Precision Machining
3J-ND Dead Length Collet Chucks for Precision Machining
SKU:CON-4edb33
Achieve precision machining with 3J-ND Dead Length Collet Chucks. Hardened alloy steel construction, chip accumulation prevention, and versatile design for optimal performance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
3J-ND Dead Length Collet Chucks for Precision Machining
$289.99
Quantity: 1
Claim Your Seller Account
3J-ND Dead Length Collet Chucks for Precision Machining
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

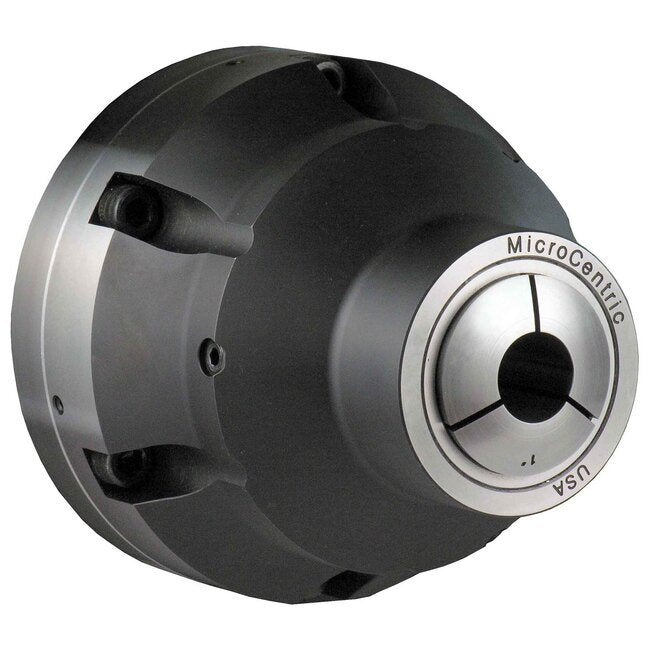

The 3J-ND Dead Length Collet Chucks are meticulously engineered for unparalleled precision and enduring performance in machining operations. Crafted from hardened alloy steel, these chucks feature a dead length design with a reduced nose to ensure consistent accuracy. The internal components are sealed to prevent chip accumulation, enhancing the chuck's longevity. With modular design adaptability to various machine spindles and draw tube configurations, these collet chucks offer versatile compatibility. Ideal for high-speed applications with a max speed of 6,000 rpm and a through capacity of 1.750 inches, these chucks guarantee optimal machining results.
Product Specifications
Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
5.950 in | 151.1 mm
Specifications Chuck Weight
28.8 lb | 12.8 kg
Specifications Collet Model
3J
Specifications C Dimension
0.800 in | 27.9 mm
Specifications Item No
35 100 310
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
140mm
Specifications Through Capacity
1.750 in | 44.4 mm
