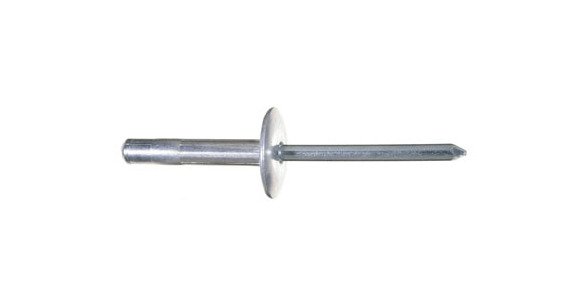

4.0mm Aluminum Steel X-Large Head Rivet
4.0mm Aluminum Steel X-Large Head Rivet
SKU:UFI-ba683c
Versatile 4.0mm Aluminum Steel Rivet for secure and durable fastening in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.0mm Aluminum Steel X-Large Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
4.0mm Aluminum Steel X-Large Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm Aluminum Steel X-Large Head Rivet is a versatile and reliable fastening solution designed for various applications, providing excellent grip strength and durability. Constructed with Aluminum Alloy ALmg 2.5 body material and Low Carbon Steel mandrel, this rivet meets high standards for performance. With a body length of 11.1mm and a maximum grip range of 7.9mm, it offers secure fastening in demanding environments. Ideal for interior cabin applications, this rivet ensures a tight and lasting hold under shear and tensile forces as per industry requirements.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
12.0 mm | 0.472 in
Nominal Dimensions Head Thickness
1.5 mm | 0.059 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
116 kgf | 255.2 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Extra Large
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel
