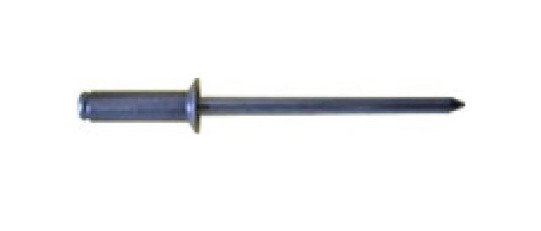

4.0mm Open End Countersunk Blind Rivet
4.0mm Open End Countersunk Blind Rivet
SKU:OPE-aa4ced
High-quality 4.0mm Open End Countersunk Blind Rivet for secure and reliable fastening in diverse applications.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
4.0mm Open End Countersunk Blind Rivet
$75.99
Quantity: 1
Claim Your Seller Account
4.0mm Open End Countersunk Blind Rivet
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm Open End Countersunk Blind Rivet by Ornit is a high-quality fastening solution suitable for various applications. Constructed with Aluminum Alloy AA 5052 body material and a zinc-plated chromium mandrel, it offers durability and corrosion resistance. With a 16.0mm body length and a grip range of 9.5mm to 11.5mm, this rivet provides secure and reliable fastening. It has a nominal shear force of 100kgf and a nominal tensile force of 160kgf, meeting stringent performance standards.
Product Specifications
Nominal Dimensions Body Length
16.0 mm | 0.630 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.2 mm | 0.283 in
Nominal Dimensions Head Thickness
1.10 mm | 0.043 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
11.5 mm | 0.453 in
Nominal Dimensions Minimum Grip Range
9.5 mm | 0.374 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
5000
Technical Specs Head Style
Countersunk
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
