4.0mm Open End Dome Blind Rivet
4.0mm Open End Dome Blind Rivet
SKU:OPE-8ca0d8
Durable 4.0mm Dome Blind Rivet by Ornit with high shear & tensile force. Ideal for industrial applications.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
4.0mm Open End Dome Blind Rivet
$45.99
Quantity: 1
Claim Your Seller Account
4.0mm Open End Dome Blind Rivet
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

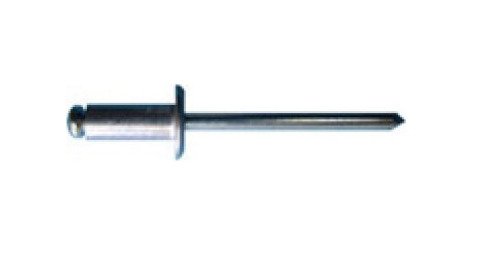

The 4.0mm Open End Dome Blind Rivet by Ornit is a high-quality fastening solution designed for industrial use. Constructed from Aluminum Alloy (AA 5052) with a Zinc Plated Chromium (Cr) VI Free Low Carbon Steel SAE 1006-1022 mandrel, it offers exceptional shear force of 100 kgf and tensile force of 160 kgf. With precise dimensions and a grip range of 5.5mm to 7.5mm, this rivet ensures secure and durable fastening in various applications.
Product Specifications
Nominal Dimensions Body Length
12.0 mm | 0.472 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.5 mm | 0.295 in
Nominal Dimensions Minimum Grip Range
5.5 mm | 0.217 in
Nominal Forces Nominal Shear Force
100 kgf | 220 lbf
Nominal Forces Nominal Tensile Force
160 kgf | 352 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (2.5 mg) to AA 5052
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
