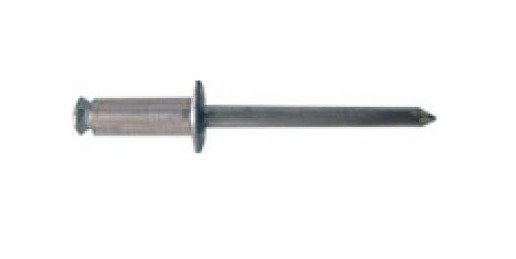

4.0mm Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Steel Mandrel
4.0mm Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Steel Mandrel
SKU:OPE-fda0bc
High-quality 4.0mm Peel Blind Rivet with Aluminum Alloy Body and Zinc Plated Steel Mandrel for secure fastening. Meets industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.0mm Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Steel Mandrel
$29.99
Quantity: 1
Claim Your Seller Account
4.0mm Peel Blind Rivet - Aluminum Alloy Body, Zinc Plated Steel Mandrel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm Diameter and 14.0mm Body Length Open End Peel Blind Rivet by Ornit is a reliable fastening solution suitable for various applications. Crafted from Aluminum Alloy with a natural finish for corrosion resistance and durability, this rivet features a Peel head style for easy installation. The Low Carbon Steel SAE 1006-1022 Mandrel, zinc plated chromium (Cr) VI free, ensures secure fastening. With a nominal shear force of 150kgf and tensile force of 185kgf, this rivet offers robust performance. Compliant with industry standards, it meets the stringent requirements of government and institutional procurements.
Product Specifications
Nominal Dimensions Body Length
14.0 mm | 0.551 in
Nominal Dimensions Diameter
4.0 mm
Nominal Dimensions Drillhole Size
4.3 mm | 0.169 in
Nominal Dimensions Head Diameter
7.8 mm | 0.307 in
Nominal Dimensions Head Thickness
1.15 mm | 0.045 in
Nominal Dimensions Mandrel Diameter
2.31 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
8.0 mm | 0.315 in
Nominal Dimensions Minimum Grip Range
4.0 mm | 0.157 in
Nominal Forces Nominal Shear Force
150 kgf | 330 lbf
Nominal Forces Nominal Tensile Force
185 kgf | 407 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy (3.5-5.0 mg) to AA 5056 /5154
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
6000
Technical Specs Head Style
Peel
Technical Specs Mandrel Finish
Zinc Plated Chromium (Cr) VI Free
Technical Specs Mandrel Material
Low Carbon Steel SAE 1006-1022
