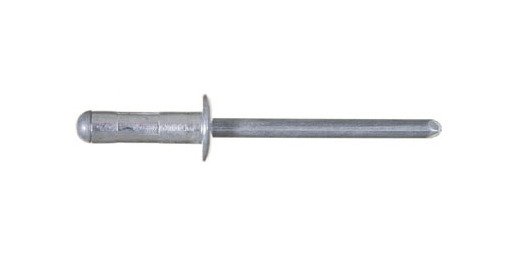

4.0mm U-Fix Aluminum Dome Head Rivet
4.0mm U-Fix Aluminum Dome Head Rivet
SKU:UFI-14aba2
Versatile 4.0mm Aluminum Dome Rivet for secure fastening in main cabins. Durable, multi-grip design.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
4.0mm U-Fix Aluminum Dome Head Rivet
$35.99
Quantity: 1
Claim Your Seller Account
4.0mm U-Fix Aluminum Dome Head Rivet
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm U-Fix Aluminum Dome Head Rivet is a top-quality fastener designed for versatile applications within main cabins. Made of durable Aluminum Alloy ALmg 1.0 with a natural finish, it offers a multi-grip function and features a 9.5mm body length. With nominal shear force of 60 kgf and nominal tensile force of 80 kgf, this rivet ensures reliable performance in diverse settings.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.3 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
60 kgf | 132 lbf
Nominal Forces Nominal Tensile Force
80 kgf | 176 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
