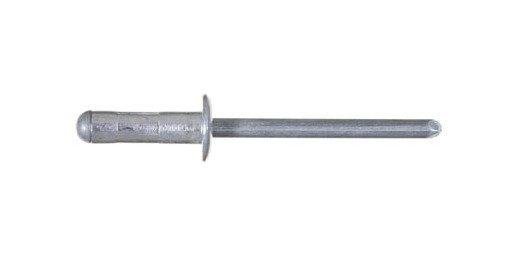

4.0mm U-Fix Aluminum Dome Rivet
4.0mm U-Fix Aluminum Dome Rivet
SKU:UFI-819a43
Versatile 4.0mm U-Fix Aluminum Dome Rivet for secure and reliable fastening in various applications. Aluminum Alloy ALmg 1.0 material, high strength, perfect for main cabin use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.0mm U-Fix Aluminum Dome Rivet
$29.99
Quantity: 1
Claim Your Seller Account
4.0mm U-Fix Aluminum Dome Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm U-Fix Aluminum Dome Head Rivet is a versatile fastener designed for various applications in the main cabin. With a multi-grip function and precise dimensions, this rivet ensures secure and reliable fastening. It boasts a body material of Aluminum Alloy ALmg 1.0, a natural finish, and meets high standards of strength with a nominal shear force of 60 kgf and a tensile force of 80 kgf. Ideal for both consumer and institutional buyers seeking durability and performance.
Product Specifications
Nominal Dimensions Body Length
11.1 mm | 0.437 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.3 mm | 0.091 in
Nominal Dimensions Maximum Grip Range
7.9 mm | 0.311 in
Nominal Dimensions Minimum Grip Range
3.2 mm | 0.126 in
Nominal Forces Nominal Shear Force
60 kgf | 132 lbf
Nominal Forces Nominal Tensile Force
80 kgf | 176 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 1.0
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Aluminum Alloy ALmg 5.0
