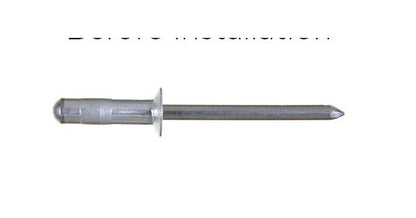

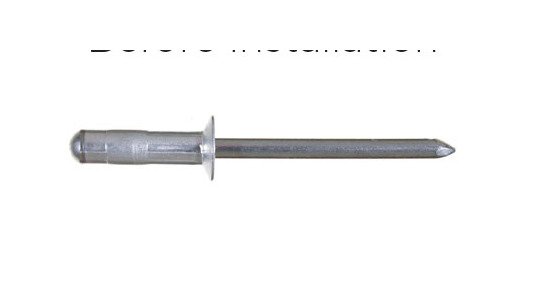

4.0mm U-Fix Aluminum/Stainless Steel 120° Countersunk Rivet
4.0mm U-Fix Aluminum/Stainless Steel 120° Countersunk Rivet
SKU:UFI-9c6682
Versatile and durable 4.0mm U-Fix rivet for high-stress applications. Aluminum Alloy body with Stainless Steel mandrel. Meets stringent quality standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
4.0mm U-Fix Aluminum/Stainless Steel 120° Countersunk Rivet
$59.99
Quantity: 1
Claim Your Seller Account
4.0mm U-Fix Aluminum/Stainless Steel 120° Countersunk Rivet
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 4.0mm U-Fix Aluminum/Stainless Steel 120° Countersunk Head Rivet is a versatile and durable fastener perfect for various applications. With a multi-grip function, it excels in securing components in high-stress environments. Crafted from Aluminum Alloy ALmg 2.5 and Stainless Steel AISI 430/434, it offers exceptional strength and corrosion resistance. This rivet is designed to meet stringent quality standards and ensure long-lasting performance.
Product Specifications
Nominal Dimensions Body Length
9.7 mm | 0.382 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
6.3 mm | 0.248 in
Nominal Dimensions Head Thickness
0.90 mm | 0.035 in
Nominal Dimensions Mandrel Diameter
2.25 mm | 0.089 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
102 kgf | 224 lbf
Nominal Forces Nominal Tensile Force
136 kgf | 299 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
8000
Technical Specs Head Style
120 Degree Countersunk
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
