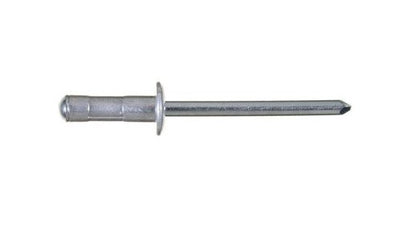

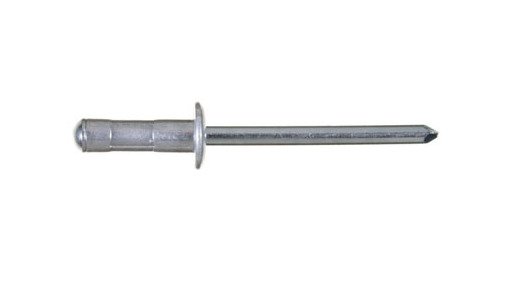

4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet

Name: 4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
Brand: Ornit USA
SKU: UFI-38fa67
Price: 35.99 USD
Availability: OutOfStock

SKU:UFI-38fa67

High-quality 4.0mm U-Fix Dome Rivet for secure and versatile fastening applications in the main cabin.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

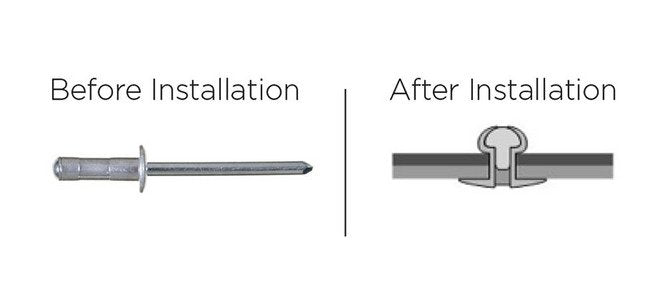

The 4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet is a top-quality fastener designed for interior applications, such as the main cabin. Crafted with precision, it features an aluminum alloy body and a stainless steel mandrel, ensuring durability and resistance to various forces. With a diameter of 4.0mm and a body length of 12.7mm, it offers a secure grip range of 4.0mm to 9.5mm, making it ideal for versatile fastening needs. Meet your requirements with confidence using this reliable and efficient dome head rivet.

Product Specifications

Nominal Dimensions Body Length

12.7 mm | 0.500 in

Nominal Dimensions Diameter

4.0 mm | 5/32 in

Nominal Dimensions Drillhole Size

4.1 mm | 0.161 in

Nominal Dimensions Head Diameter

7.9 mm | 0.311 in

Nominal Dimensions Head Thickness

1.20 mm | 0.047 in

Nominal Dimensions Mandrel Diameter

2.11 mm | 2.25 mm | 0.083 in | 0.089 in

Nominal Dimensions Maximum Grip Range

9.5 mm | 0.374 in

Nominal Dimensions Minimum Grip Range

4.0 mm | 0.157 in

Nominal Forces Nominal Shear Force

116 kgf | 255 lbf

Nominal Forces Nominal Tensile Force

170 kgf | 374 lbf

Technical Specs Body Finish

Natural

Technical Specs Body Material

Aluminum Alloy ALmg 2.5

Technical Specs Brands

Ornit

Technical Specs Carton Quantity

6000

Technical Specs Head Style

Dome

Technical Specs Mandrel Finish

Natural

Technical Specs Mandrel Material

Stainless Steel AISI 430/434 or Equivalent

4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
