4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
SKU:UFI-7a0807
Versatile 4.0mm Dome Head Rivet for strong and secure fastening in various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Claim Your Seller Account
4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

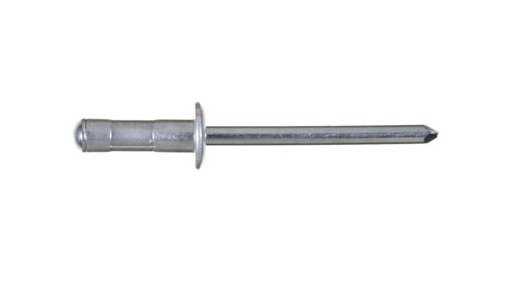

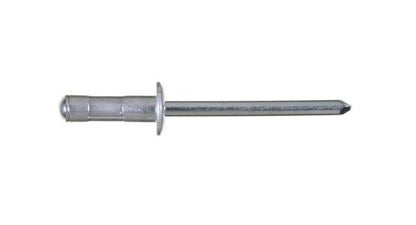

The 4.0mm U-Fix Aluminum/Stainless Steel Dome Head Rivet is a versatile and durable fastener designed for various applications. With a body made of Aluminum Alloy ALmg 2.5 and a stainless steel mandrel, it offers superior strength and corrosion resistance. The dome head design ensures a secure grip, with shear force up to 116 kgf and tensile force up to 170 kgf. Ideal for main cabin installations, this rivet boasts a grip range of 1.2mm to 6.4mm, meeting stringent industry standards for reliability and performance.
Product Specifications
Nominal Dimensions Body Length
9.5 mm | 0.374 in
Nominal Dimensions Diameter
4.0 mm | 5/32 in
Nominal Dimensions Drillhole Size
4.1 mm | 0.161 in
Nominal Dimensions Head Diameter
7.9 mm | 0.311 in
Nominal Dimensions Head Thickness
1.20 mm | 0.047 in
Nominal Dimensions Mandrel Diameter
2.11 mm | 2.25 mm | 0.083 in | 0.089 in
Nominal Dimensions Maximum Grip Range
6.4 mm | 0.252 in
Nominal Dimensions Minimum Grip Range
1.2 mm | 0.047 in
Nominal Forces Nominal Shear Force
116 kgf | 255 lbf
Nominal Forces Nominal Tensile Force
170 kgf | 374 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Aluminum Alloy ALmg 2.5
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
7000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
